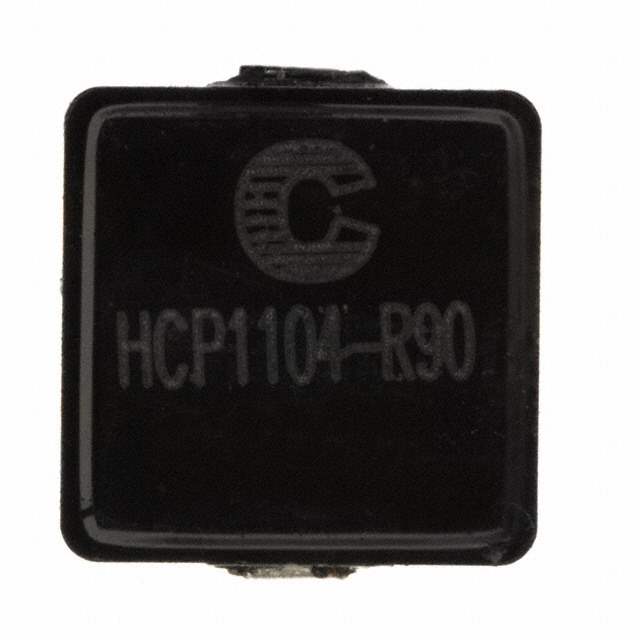

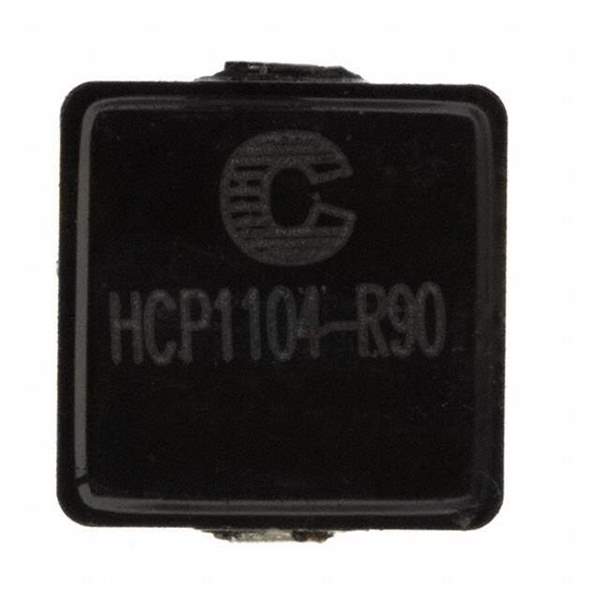

HCP1104-R90-R Real Image1 HCP1104-R90-R Real Image2
Same model may have multiple batches, images only for reference.
HCP1104-R90-R Real Image1 HCP1104-R90-R Real Image2
HCP1104-R90-R Real Image1 HCP1104-R90-R Real Image2
Same model may have multiple batches, images only for reference.

HCP1104-R90-R

Part No HCP1104-R90-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 900NH 22A 2.5 MOHM SMD
Datasheet
HCP1104-R90-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Material - Core Powdered Iron
Inductance 900nH
Tolerance ±20%
Current Rating 22A
Current - Saturation 25A
DC Resistance (DCR) 2.5 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 106804-HCP1104-R90-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HCP1104-R90-R CAD Model

Description

The Eaton Bussmann 106804-HCP1104-R90-R wirewound inductor is a high-quality component designed to provide excellent performance and reliability. The inductor is made of high-quality powdered iron material and has a current rating of 22A. The inductor has an inductance of 900nH and a tolerance of ±20%. The height of the inductor is 0.157" (4.00mm), and it is mounted using SMD (SMT) technology. The DC resistance (DCR) of the inductor is 2.5 mOhm Max, and the temperature range for operating is -55°C to 125°C. The supply and demand status of the inductor is balanced.
