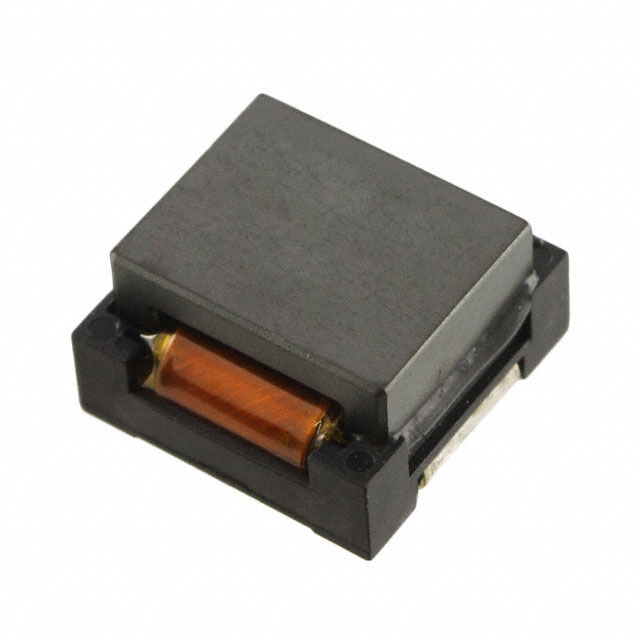

HC2LP-R68-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

HC2LP-R68-R

Part No HC2LP-R68-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 680NH 52.9A 0.6 MOHM
Datasheet
HC2LP-R68-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 680nH
Tolerance ±20%
Current Rating 52.9A
Current - Saturation 50A
DC Resistance (DCR) 0.6 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 300kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.440" (11.18mm)
Win Source Part Number 001502-HC2LP-R68-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC2LP-R68-R CAD Model

Description

The HC2LP-R68-R is a wirewound inductor that has an inductance of 680nH with a tolerance of ±20%. This inductor has a current rating of 52.9A with a saturation current of 50A. The HC2LP-R68-R has a height of 0.440" (11.18mm) and a DC resistance of 0.6 mOhm Max. It is designed to operate in a temperature range of -40°C to 85°C and has a frequency test of 300kHz. The HC2LP-R68-R is packaged in reel - TR and is an active product.
