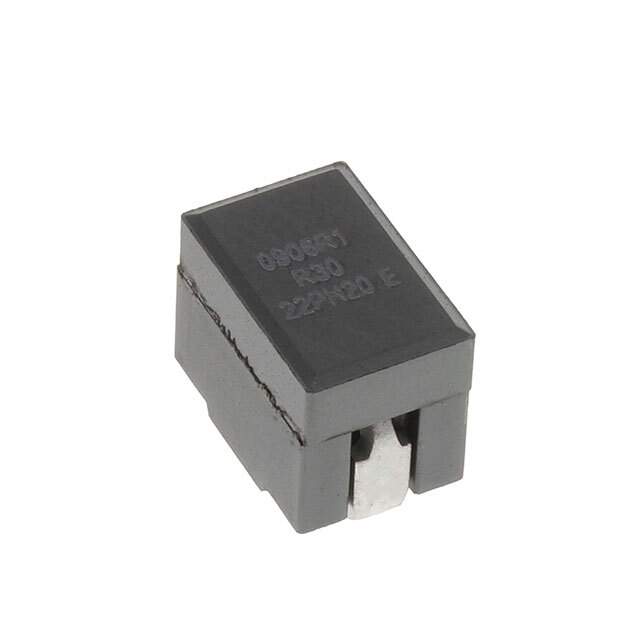

The FP0906R1-R30-R is a fixed inductor manufactured by Eaton Bussmann. Fixed inductors are passive electronic components that store energy in a magnetic field when electric current flows through them. They are characterized by their inductance value, which determines their ability to resist changes in current. This particular inductor is used for filtering, energy storage, and impedance matching in various electronic circuits.

Applications:

• Power Supplies (DC-DC converters, AC-DC converters)
• RF Filtering
• EMI Filtering
• Energy Storage
• Impedance Matching
• Buck and Boost Converters

Features:

• Fixed Inductance: Offers a stable inductance value.
• Shielded Construction: Reduces electromagnetic interference (EMI).
• High Current Handling: Designed to handle relatively high currents.
• Low DC Resistance (DCR): Minimizes power losses.
• Compact Size: Suitable for space-constrained applications.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances directive.

Benefits:

• Effective Filtering: Smooths out voltage and current fluctuations, improving circuit performance.
• Reduced EMI: Shielded construction minimizes interference with other components.
• Efficient Energy Storage: Stores energy efficiently for use in power conversion circuits.
• Improved Circuit Stability: Provides stable impedance, preventing oscillations and instability.
• Long Lifespan: Robust design ensures reliable operation over an extended period.

Additional Details:

Based on the part number, it's likely this inductor has an inductance value of 0.30 microhenries (µH). The FP0906 likely refers to the package size/style. The 'R' at the end indicates RoHS compliance. Eaton Bussmann provides detailed datasheets specifying inductance tolerance, saturation current, DC resistance, and self-resonant frequency. These parameters are crucial for selecting the appropriate inductor for a specific application. Inductors are often used in conjunction with capacitors to create LC filters, which can be used to remove unwanted noise from signals. Selecting the correct inductor involves considering the operating frequency, current requirements, and size constraints of the application. Refer to the Eaton Bussmann datasheet for FP0906 series inductors for precise specifications.
