DR1030-680-R Real Image
Same model may have multiple batches, images only for reference.

DR1030-680-R

Part No DR1030-680-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 68UH 1.1A 303.7MOHM SM / 68 µH Shielded Drum Core, Wirewound Inductor 1.1 A 303.7mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±30%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.24A
Shielding Shielded
DC Resistance (DCR) 303.7mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard

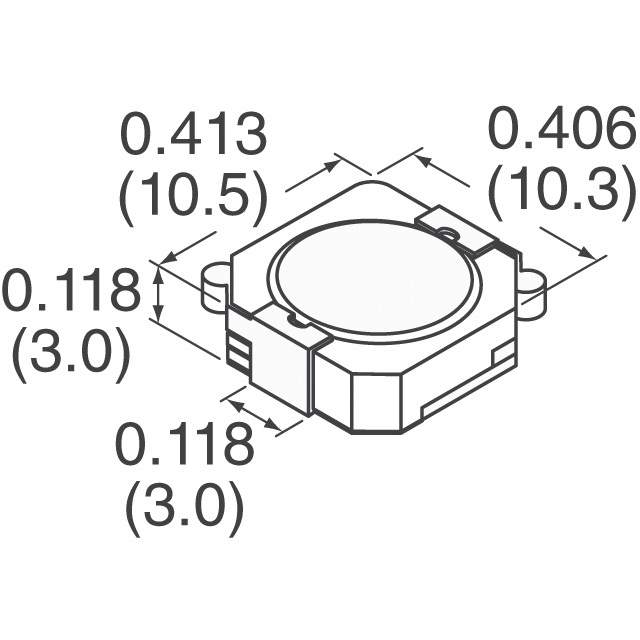

Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 513-1335-6,513-1335-1,513-1335-2,DR1030680R
Standard Package 1,000
Win Source Part Number 1329622-DR1030-680-R
Ultra Librarian 3D Model Ultra Librarian DR1030-680-R CAD Model

Description

This shielded drum core wirewound inductor is part of the DR1030 series from Würth Elektronik.

  • Inductance: 68 µH
  • Tolerance: ±30%
  • Dimensions: 0.413" L x 0.406" W (10.50mm x 10.30mm)
  • Height: 0.118" (3.00mm)
  • DC Resistance (DCR): 303.7mOhm
  • Current Rating: 1.1 A
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface Mount
  • Material: Ferrite
  • Package/Case: Nonstandard
  • ROHS3 Compliant: Yes
  • Standard Package: 1,000
