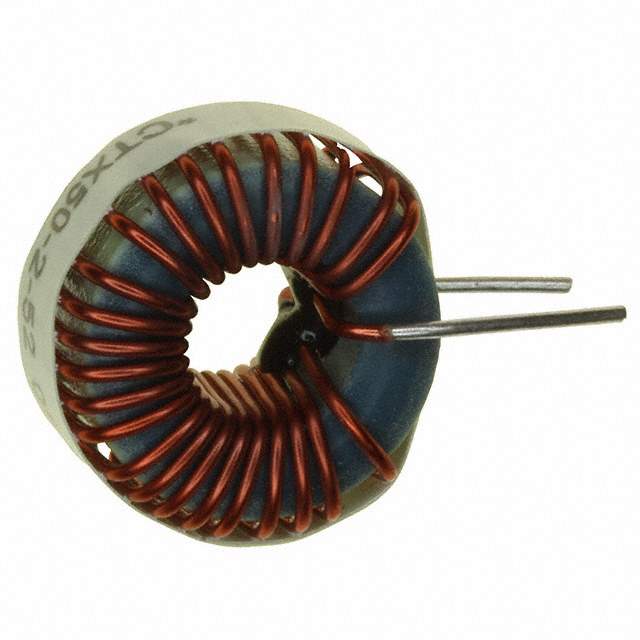

CTX50-2-52-R Real Image
Same model may have multiple batches, images only for reference.

CTX50-2-52-R

Part No CTX50-2-52-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 50UH 4.9A 32.6 MOHM TH / 50 µH Unshielded Toroidal Inductor 4.9 A 32.6mOhm Max Radial, Vertical (Open)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series CTX
Package Bulk
Type Toroidal
Material - Core Iron Powder
Inductance 50 µH
Tolerance ±20%
Current Rating (Amps) 4.9 A
Current - Saturation (Isat) 4.9A
Shielding Unshielded
DC Resistance (DCR) 32.6mOhm Max
Temperature Range - Operating -40°C ~ 75°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Dimension 0.850" Dia x 0.535" W (21.60mm x 13.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX50-2-52-ND,CTX50-2-52-R-ND,513-1548,CTX50252R,CTX50-2-52,Q4164154V
Standard Package 85
Win Source Part Number 996227-CTX50-2-52-R
Ultra Librarian 3D Model Ultra Librarian CTX50-2-52-R CAD Model

Description

The CTX series fixed inductor is a toroidal type inductor that is designed for through-hole mounting.

  • Package: Bulk
  • Shielded: Unshielded
  • Inductance: 50 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 32.6mOhm Max
  • Current Rating: 4.9A
  • Inductance Frequency-Test: 100 kHz
  • Core Material: Iron powder
  • Operating Temperature Range: -40°C ~ 75°C
  • Dimension: 0.850" Dia x 0.535" W (21.60mm x 13.60mm)
