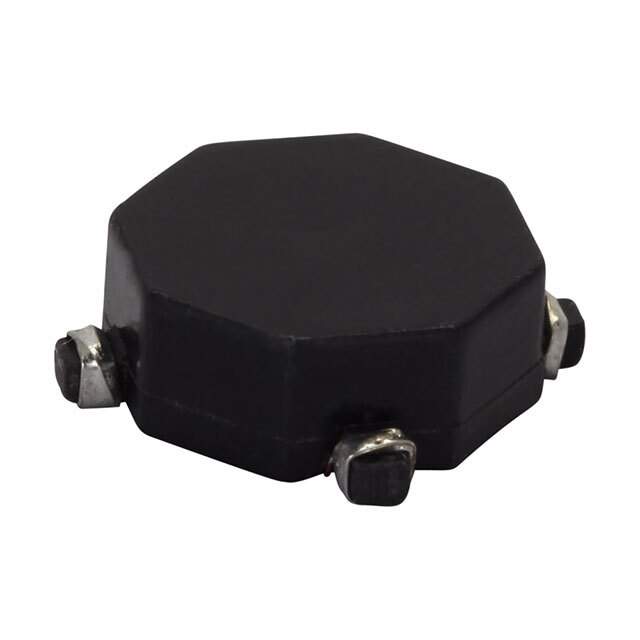

CTX300-1P-R Real Image
Same model may have multiple batches, images only for reference.

CTX300-1P-R

Part No CTX300-1P-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 299.87UH SMD / Unshielded 2 Coil Inductor Array 1.199 mH Inductance - Connected in Series 299.87 µH Inductance - Connected in Parallel 1.525Ohm Max DC Resistance (DCR) - Parallel 320 mA Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series Econo-Pac™
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 299.87 µH
Inductance - Connected In Series 1.199 mH
Tolerance ±20%
Current Rating - Parallel 320 mA
Current Rating - Series 160 mA
DC Resistance (DCR) - Parallel 1.525Ohm Max
DC Resistance (DCR) - Series 6.1Ohm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.165" (4.19mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names CTX300-1P-R-ND,283-CTX300-1P-RDKR,CTX300-1P,283-CTX300-1P-RCT,CTX300-1P-ND,283-CTX300-1P-RTR
Standard Package 1,100
Win Source Part Number 1180262-CTX300-1P-R
Ultra Librarian 3D Model Ultra Librarian CTX300-1P-R CAD Model

Description

The Econo-Pac series signal transformer from Eaton is an array of 2 coils that offer inductance of 1.199mH when connected in series and 299.87µH when connected in parallel.

  • Package: Tape & reel
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Height: 0.165" (4.19mm)
  • Current Rating (Parallel): 320mA
  • Current Rating (Series): 160mA
  • DC Resistance (DCR) (Parallel): 1.525Ohm Max
  • DC Resistance (DCR) (Series): 6.1Ohm Max
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.450" L x 0.450" W (11.43mm x 11.43mm)
