Same model may have multiple batches, images only for reference.

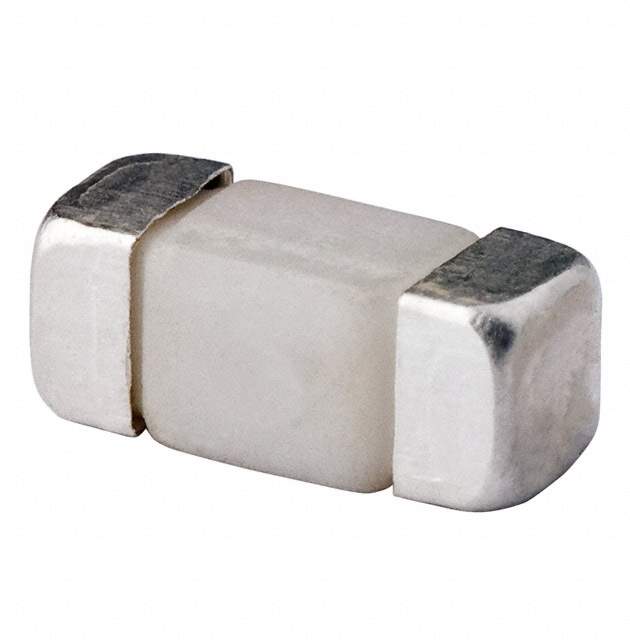

CB61F12A-TR1 Real Image
Same model may have multiple batches, images only for reference.

CB61F12A-TR1

Part No CB61F12A-TR1
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 12A 125VAC/VDC SMD / 12 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Mounting Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 12 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Case / Package 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Melting I2t 40
Approval Agency cULus, PSE
Size / Dimension 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
DC Cold Resistance 0.005 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 283-4103-6,CB61F12ATR1,283-4103-2,283-4103-1
Standard Package 1,000
Win Source Part Number 1334814-CB61F12A-TR1
Ultra Librarian 3D Model Ultra Librarian CB61F12A-TR1 CAD Model

Description

The CB61F12A-TR1 is a circuit protection fuse from Eaton - Electronics Division.

  • Packaging: Reel - TR
  • Color: None
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 125 V
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 50A AC, 300A DC
  • Melting I2t: 40
  • Size / Dimension: 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
  • DC Cold Resistance: 0.005 Ohms
  • Standard Package: 1,000
  • Mounting: Surface Mount
  • Case / Package: 2-SMD, Square End Block
  • MSL Level: 1 (Unlimited)
  • Current Rating: 12 A
  • HTSUS: 8536.10.0040
  • Other Part Numbers: 283-4103-6, CB61F12ATR1, 283-4103-2, and 283-4103-1
  • Approval Agency: cULus, PSE
  • RoHS Status: ROHS3 Compliant
