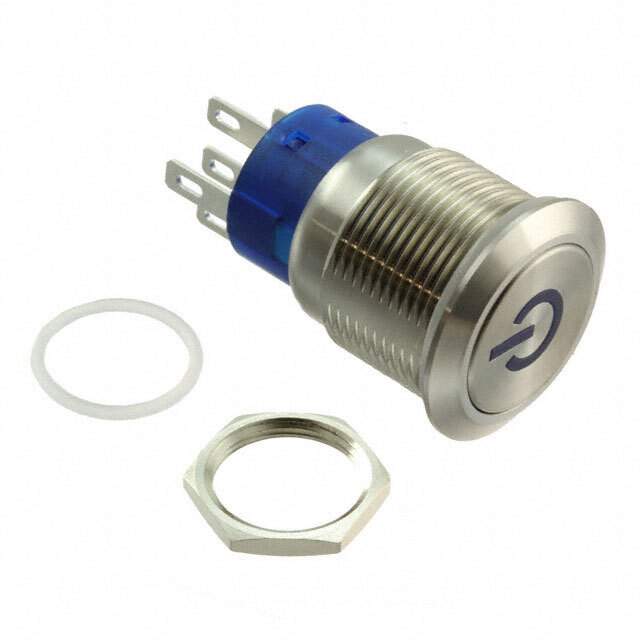

ULV4F2BSS544 Real Image
Same model may have multiple batches, images only for reference.

ULV4F2BSS544

Part No ULV4F2BSS544
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 250V / Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Datasheet
ULV4F2BSS544 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series ULV4
Package Bulk
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 250 V
Actuator Type Round, Button, Flush
Actuator Marking Power Symbol
Color - Actuator/Cap Silver
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 12 VDC
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 19.20mm Dia
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number ULV4
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1341335-ULV4F2BSS544
Ultra Librarian 3D Model Ultra Librarian ULV4F2BSS544 CAD Model

Description

The E-Switch ULV4F2BSS544 is an anti-vandal, illuminated pushbutton switch that is SPDT and on-mom.

  • Voltage Rating: 250V AC
  • Electrical Life: 50,000 cycles
  • Actuation: round, button, flush actuated
  • Actuator/Cap Color: silver with a power symbol marking
  • Package: bulk
  • Standard Package: 20
  • Ingress Protection: IP67 - dust tight, waterproof
  • Panel Cutout Dimensions: circular - 19.20mm Dia
  • Mounting: panel, front
  • Temperature Range: -20°C to 55°C
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS Code: 8536.50.9031
