Same model may have multiple batches, images only for reference.

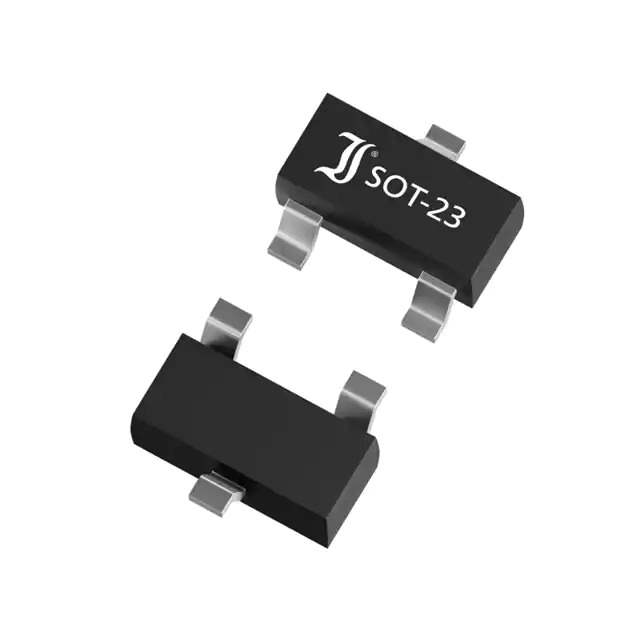

PSOT24C Real Image
Same model may have multiple batches, images only for reference.

PSOT24C

Part No PSOT24C
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 24VWM 49VC SOT23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 49V
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 63pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 282069-PSOT24C
Ultra Librarian 3D Model Ultra Librarian PSOT24C CAD Model

Description

The 282069-PSOT24C is a bidirectional TVS diode designed for general-purpose circuit protection against transient voltage events.

  • Voltage Reverse Standoff: 24V
  • Minimum Breakdown Voltage: 26.7V
  • Clamping Voltage @ Peak Pulse Current: 49V
  • Peak Pulse Power: 500W
  • Channel: Bidirectional
  • Package Type: Surface Mount (TO-236-3, SC-59, SOT-23-3)
  • Application: Circuit protection in electronic devices
  • Capacitance: 63pF @ a frequency of 1MHz
  • Peak Pulse Current: 12A (8/20μs)
  • Operating Temperature: -55°C to 150°C (TJ)
  • Manufacturer: DIOTEC Electronics Corporation
  • Product Line: Active
