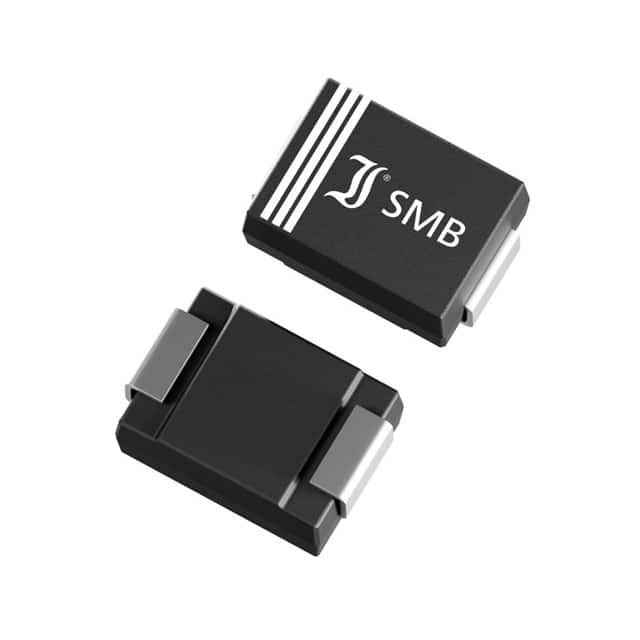

Part No P6SMBJ90A
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 90VWM 146VC SMB/DO214 / 146V Clamp 4.1A Ipp Tvs Diode Surface Mount SMB/DO-214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 90V
Voltage - Breakdown (Min) 100V
Voltage - Clamping (Max) @ Ipp 146V
Current - Peak Pulse (10/1000µs) 4.1A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB/DO-214AA
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 929905-P6SMBJ90A
Ultra Librarian 3D Model Ultra Librarian P6SMBJ90A CAD Model

Description

The P6SMBJ90A is a unidirectional TVS diode designed for general-purpose circuit protection.

  • Type: Unidirectional TVS Diode
  • Application: General-Purpose Circuit Protection
  • Reverse Standoff Voltage: 90V
  • Breakdown Voltage: 100V
  • Clamping Voltage @ Peak Pulse Current: 146V
  • Peak Pulse Power: 600W
  • Package: DO-214AA
  • Mounting Type: Surface Mountable
  • Packaging: Tape and Reel
  • Standard Package Quantity: 3,000 pcs
  • Product Status: Active
  • Manufacturer: DIOTEC Electronics Corporation
  • Common Applications: Transient Voltage Suppression
