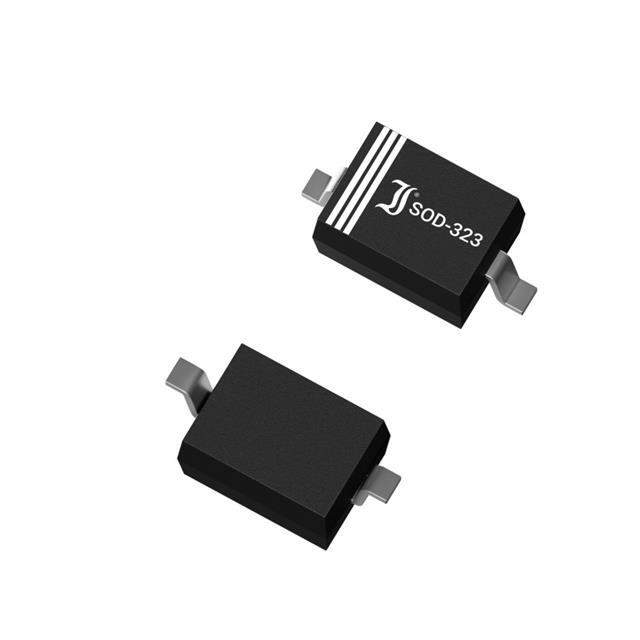

ESD3Z24GW Real Image
Same model may have multiple batches, images only for reference.

ESD3Z24GW

Part No ESD3Z24GW
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description ESD Diode, 24V, 550W, Unidir  /  35V Clamp 16A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 35V
Current - Peak Pulse (10/1000µs) 16A (8/20µs)
Power - Peak Pulse 550W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 80pF @ 1MHz
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-ESD3Z24GWTR,2796-ESD3Z24GWTR
Standard Package 30
Win Source Part Number 1057870-ESD3Z24GW
Ultra Librarian 3D Model Ultra Librarian ESD3Z24GW CAD Model

Description

The Diotec Semiconductor ESD3Z24GW is a Zener diode manufactured by Diotec Semiconductor.

  • Standard Package: 30
  • Mounting Type: SMD (SMT)
  • Voltage-Reverse Standoff (typ): 24V
  • Voltage-Breakdown (min): 26.7V
  • Voltage-Clamping (max) @ Ipp: 35V
  • Power-Peak Pulse: 550W
  • Capacitance: 80pF @ 1MHz
  • Current-Peak Pulse (10/1000µs): 16A (8/20µs)
  • Package / Case: SC-76, SOD-323
  • Supplier Device Package: SOD-323
