Same model may have multiple batches, images only for reference.

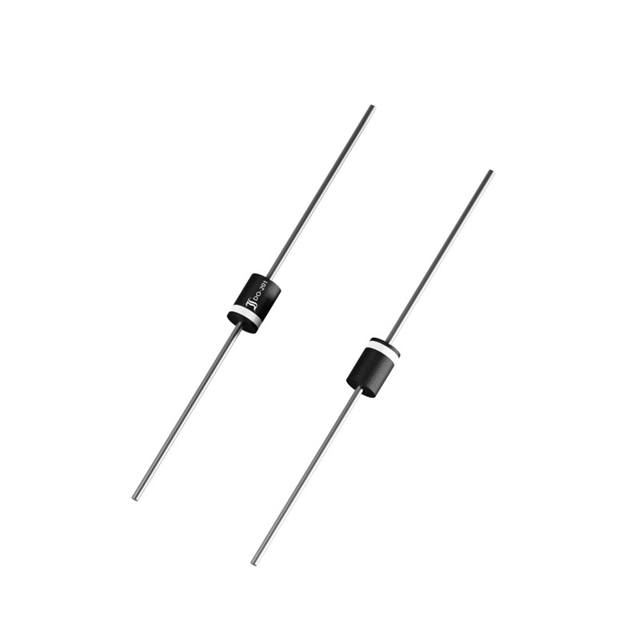

BY1600 Real Image
Same model may have multiple batches, images only for reference.

BY1600

Part No BY1600
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description ST Rect, 1600V, 3A / Diode Standard 1600 V 3A Through Hole DO-201
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 1.6 kV
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Operating Temperature - Junction -50°C ~ 150°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-BY1600TR
Standard Package 30
Win Source Part Number 1050148-BY1600
Ultra Librarian 3D Model Ultra Librarian BY1600 CAD Model

Description

The BY1600 diode rectifier from Diotec Semiconductor is a reliable and efficient component for use in various electronic devices.

  • Maximum Reverse Voltage: 1600V
  • Average Rectified Current: Up to 3A
  • Operating Temperature Range: -50°C to 150°C
  • Mounting: Through-hole
  • Package: DO-201AA, DO-27, Axial
  • Standard Package: 30
