Same model may have multiple batches, images only for reference.

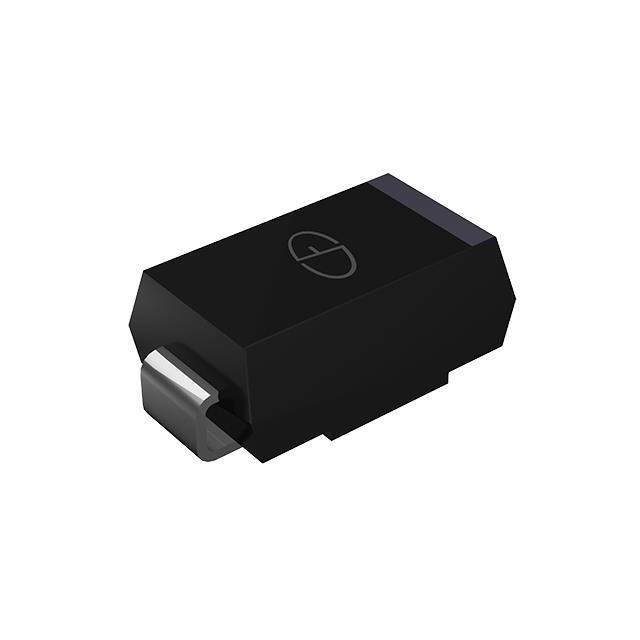

3.0SMCJ36CA Real Image
Same model may have multiple batches, images only for reference.

3.0SMCJ36CA

Part No 3.0SMCJ36CA
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVSDIODE,SMC,36V,3000W,BI / 58.1V Clamp 51.6A Ipp Tvs Diode Surface Mount SMC/DO-214AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Diotec Semiconductor
Package Strip
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 58.1V
Current - Peak Pulse (10/1000µs) 51.6A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC/DO-214AB
Other Names 2721-3.0SMCJ36CA
Standard Package 30
Win Source Part Number 1037889-3.0SMCJ36CA
Ultra Librarian 3D Model Ultra Librarian 3.0SMCJ36CA CAD Model

Description

The 3.0SMCJ36CA is a 1-channel Zener type TVS diode from Diotec Semiconductor.

  • Channel Count: 1
  • Type: Zener TVS diode
  • Reverse Standoff Voltage: 36V
  • Breakdown Voltage: 40V
  • Maximum Clamping Voltage @ Ipp: 58.1V
  • Peak Pulse Power: 3000W
  • Application: General-purpose TVS diode
  • Package Type: Strip
  • Package: DO-214AB, SMC
  • Channel Direction: Bidirectional
  • Operating Temperature: -50°C to 150°C
