SMCJ11CA-13-F TVS Diode by Diodes Incorporated

The SMCJ11CA-13-F from Diodes Incorporated is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This TVS diode is a popular choice for safeguarding voltage-sensitive components which can be affected by these high-energy phenomena. The "CA" suffix indicates that it is a bidirectional device, providing protection in both directions, which is particularly useful in AC circuit applications or where the polarity of the transient could reverse.

Key Features

• Stand-Off Voltage: The SMCJ11CA-13-F has a stand-off voltage of 11V, making it suitable for a range of applications that operate around this voltage level.
• Peak Pulse Power: It can handle peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, which helps to protect against high energy transients.
• Clamping Voltage: The device has a clamping voltage of 18.2V, ensuring that any voltage exceeding this level is effectively clamped down to protect the circuit.

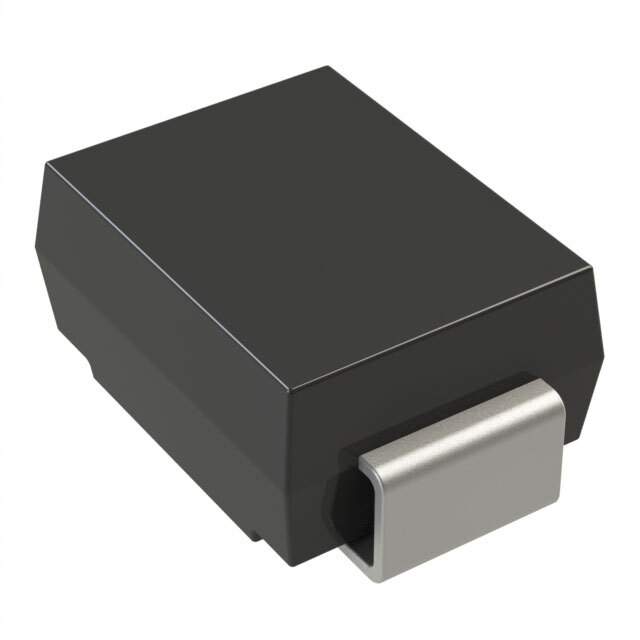

• Package: Housed in an SMC package, it is designed to provide a compact footprint while ensuring robust performance.
• Temperature Range: The operating junction temperature range for the SMCJ11CA-13-F is from -55°C to +150°C, making it reliable across a wide range of environmental conditions.

Applications

The SMCJ11CA-13-F is commonly used in applications that require high surge protection, such as:

• Power supply lines
• Communication systems
• Automotive systems
• Industrial controls
• Consumer electronics

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the SMCJ11CA-13-F is no exception. It is RoHS compliant, ensuring that it meets the latest environmental standards and is free from hazardous substances. The device also meets the ISO 9001 quality management system, indicating that it adheres to strict quality control measures throughout its manufacturing process.

Overall, the SMCJ11CA-13-F is a high-performance, reliable solution for protecting electronic circuits from voltage transients, ensuring the longevity and stability of your electronic devices.
