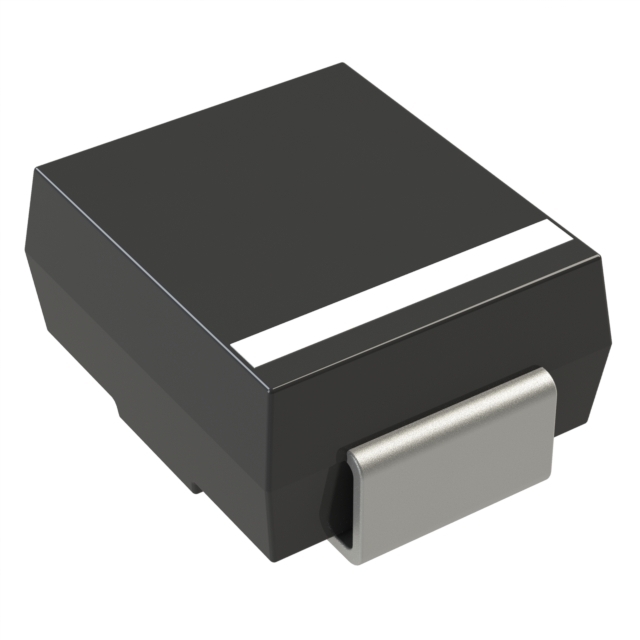

SMBJ90CA-13 Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ90CA-13

Part No SMBJ90CA-13
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description TVS DIODE 90VWM 146VC SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionTransient Voltage Suppressors (TVS)TVS Diodes
Mfr Diodes Incorporated
Series SMBJ
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 90V
Voltage - Breakdown (Min) 100V
Voltage - Clamping (Max) @ Ipp 146V
Current - Peak Pulse (10/1000μs) 4.1A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Base Product Number SMBJ90
Ultra Librarian 3D Model Ultra Librarian SMBJ90CA-13 CAD Model
