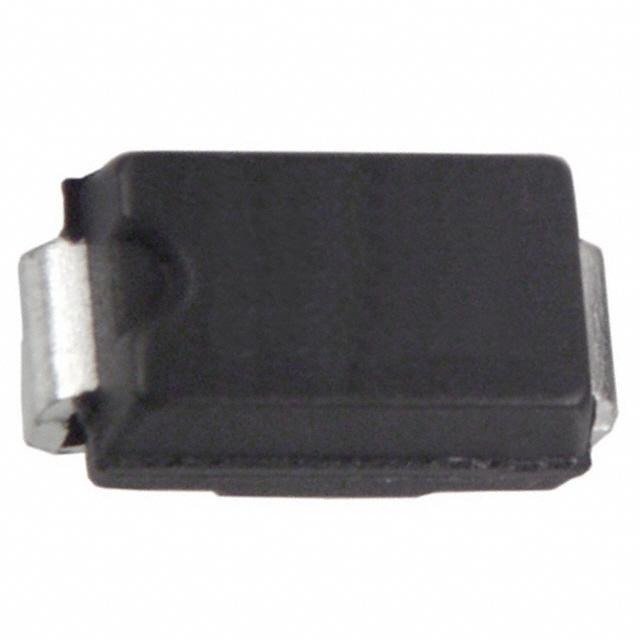

Product Overview: SMAJ58A-13-G-90 - Diodes Incorporated

The SMAJ58A-13-G-90 from Diodes Incorporated is a high-quality TVS (Transient Voltage Suppressor) diode designed to provide exceptional circuit protection in a wide range of applications. This robust component is engineered to shield sensitive electronic equipment from voltage transients induced by system-level events such as load dump, lightning, and the inductive switching of motors.

Key Features

• Device Type: TVS - Transient Voltage Suppressors
• Reverse Standoff Voltage (Vrwm): 58V
• Breakdown Voltage (Vbr): 64.4V to 71.2V
• Clamping Voltage (Vc): 93.6V
• Peak Pulse Current (Ippm): 9.5A
• Package / Case: DO-214AC, also known as SMA
• Operating Temperature Range: -55°C to +150°C
• Polarity: Unidirectional
• Qualification: AEC-Q101 qualified for automotive applications
• Mounting Type: Surface Mount
• Lead-Free / RoHS Compliant: Yes
• Product Status: Active

Applications

The SMAJ58A-13-G-90 is ideal for protecting voltage sensitive components from high transient conditions in a variety of applications, including:

• Automotive systems
• Industrial computers
• Power supply devices
• Telecommunication systems
• Consumer electronics
• Medical equipment

Product Benefits

This TVS diode offers several benefits to the designer and end-user:

• Enhanced reliability with fast response time to transient over-voltage events.
• Robust construction designed to withstand harsh environmental conditions.
• Low incremental surge resistance to provide better performance in surge protection.
• Compact SMA package allows for efficient use of board space in design.
• Compliance with RoHS directives makes it suitable for use in environmentally sensitive applications.

With its combination of features, the SMAJ58A-13-G-90 TVS diode from Diodes Incorporated is an excellent choice for designers looking to enhance the durability and longevity of their electronic systems against voltage transients.
