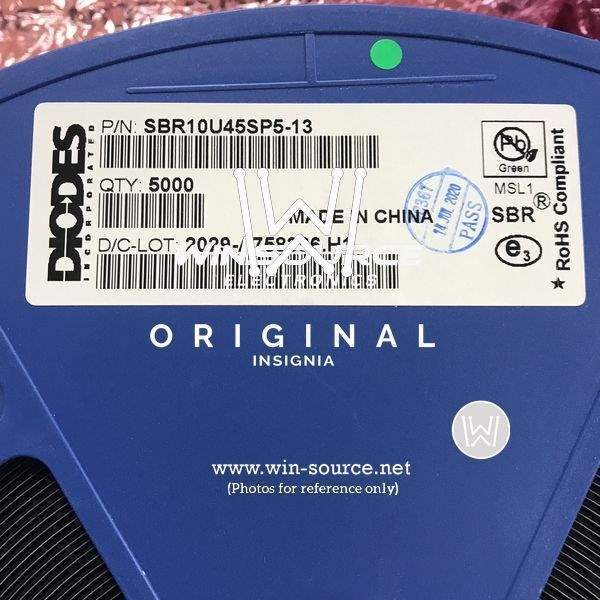

Product Overview: SBR10U45SP5-13 from Diodes Incorporated

The SBR10U45SP5-13 is a cutting-edge Super Barrier Rectifier (SBR) from Diodes Incorporated, designed to offer superior performance in a wide range of applications. This rectifier is a testament to Diodes Incorporated's commitment to providing high-efficiency, reliable components for the electronics industry.

Key Features

• Low Forward Voltage Drop: The SBR10U45SP5-13 boasts a low forward voltage drop, which enhances its efficiency by minimizing power loss during operation.
• High Surge Capability: With its robust surge capability, this rectifier is well-suited to handle the occasional overcurrent conditions without failure, thus ensuring a longer operational lifespan.
• Power Pack 5 (PP5) Package: Encased in the compact and thermally efficient Power Pack 5 (PP5) package, the SBR10U45SP5-13 offers excellent power density and is easy to integrate into various circuit designs.
• RoHS Compliant: Compliance with the Restriction of Hazardous Substances (RoHS) directive makes this product environmentally friendly and suitable for use in a wide range of markets, including those with strict environmental regulations.

Applications

The versatility of the SBR10U45SP5-13 allows it to be utilized in numerous applications, including but not limited to:

• Switch Mode Power Supplies (SMPS)
• LED Lighting
• Freewheeling Diodes
• Reverse Battery Protection
• DC-DC Converters
• Automotive Applications

Technical Specifications

The SBR10U45SP5-13 is characterized by the following specifications:

• Maximum Average Forward Current: 10A
• Peak Repetitive Reverse Voltage: 45V
• Maximum Forward Voltage Drop: At a forward current of 10A, the typical voltage drop is 0.55V.
• Operating Junction Temperature Range: -55°C to +150°C

Quality and Reliability

Diodes Incorporated is known for its high standards of quality and reliability, and the SBR10U45SP5-13 is no exception. Each unit is manufactured with the utmost care and undergoes rigorous testing to ensure it meets the company's stringent requirements. Customers can rest assured that they are receiving a product that will perform reliably even under demanding conditions.

For detailed information, datasheets, and technical support, customers are encouraged to visit Diodes Incorporated's official website or contact their local sales representative.
