The SBL1645 from Diodes Incorporated is a high-performance Schottky Barrier Rectifier designed for applications requiring low voltage drop and high efficiency. With its robust design, this rectifier is ideal for use in power supplies, converters, freewheeling diodes, and reverse battery protection.

Key Features

• Voltage Ratings: The SBL1645 has a maximum repetitive peak reverse voltage of 45V, making it suitable for a range of low voltage applications.
• Current Capability: It boasts a high average rectified forward current of 16A, ensuring it can handle significant power requirements.
• Low Forward Voltage Drop: The device offers a low forward voltage drop, which enhances system efficiency and reduces thermal issues.
• High Surge Capacity: With its excellent surge capacity, the SBL1645 can withstand high surge currents, making it reliable in demanding situations.
• Power Dissipation: It is capable of withstanding a power dissipation of 2.0W, ensuring durability and longevity.

Applications

The SBL1645 is versatile and can be used in various applications, including:

• Switching power supplies
• DC-DC converters
• AC-DC converters
• Free Wheeling Diodes in converters and motor control circuits
• Reverse battery protection

Package and Quality

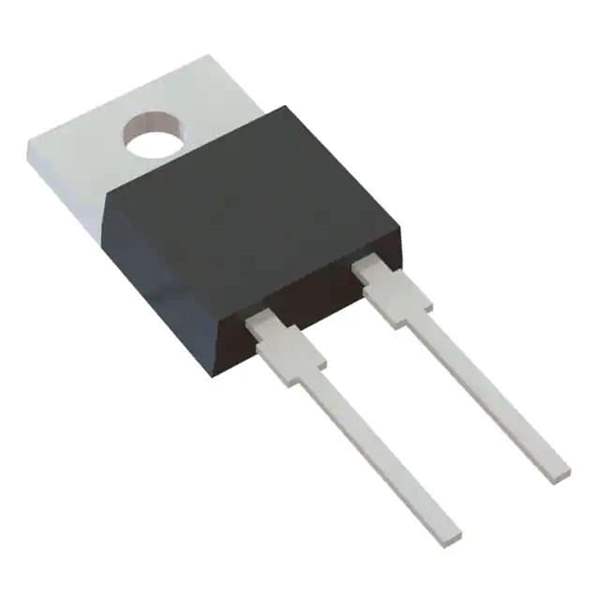

Packaged in a TO-220AB, the SBL1645 is designed for easy mounting on PCBs and is capable of withstanding high levels of mechanical stress. Diodes Incorporated ensures that the SBL1645 meets high-quality standards, with rigorous testing and compliance with industry certifications.

Environmental and Safety Compliance

The SBL1645 is RoHS compliant, meaning it is manufactured without the use of hazardous substances. It also meets other environmental standards, ensuring its suitability for use in environmentally sensitive applications.
