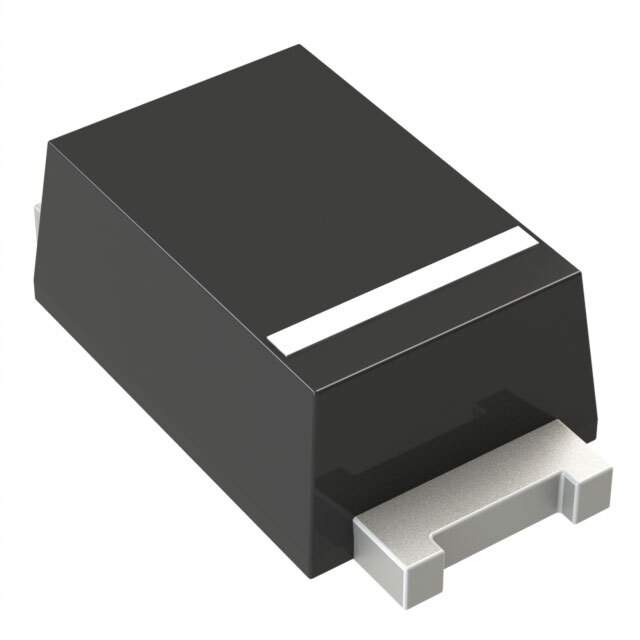

The RS1MSWFQ-7 is a high-efficiency, surface-mount Rectifier Diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This product is engineered to provide reliable and fast switching with minimal losses, making it a perfect component for a wide range of electronic applications, including power supply, lighting, and automotive systems.

Key Features

• High Forward Surge Capability: This diode can handle a high level of surge current, making it suitable for applications that experience short-duration overcurrent conditions.
• Low Reverse Leakage: The RS1MSWFQ-7 is characterized by its low reverse leakage current, which enhances the overall efficiency of the circuit in which it is used.
• Surface Mount Package: The compact SMA (DO-214AC) package allows for efficient use of board space and is ideal for automated assembly processes.
• Lead-Free and RoHS Compliant: The product is environmentally friendly, complying with current RoHS directives, and is free of lead and other hazardous substances.

Electrical Characteristics

With a maximum repetitive peak reverse voltage of 1000V and a forward continuous current of 1A, the RS1MSWFQ-7 is equipped to handle a variety of electrical tasks. Its fast switching speed ensures that the diode can operate efficiently in circuits with high switching frequencies. Moreover, the device can sustain a peak forward surge current of 30A, providing ample protection against unexpected current spikes.

Applications

The RS1MSWFQ-7 is versatile and can be used in a broad spectrum of applications. It is particularly well-suited for high-frequency rectification in switch-mode power supplies, as well as for freewheeling and polarity protection in commercial and automotive environments. Its robust design also makes it an excellent choice for LED lighting applications, where reliability and longevity are critical.

Ordering Information

Product RS1MSWFQ-7 is available for order from Diodes Incorporated and its authorized distributors. It comes packaged in a standard tape and reel format, facilitating easy integration into manufacturing workflows. For detailed specifications, pricing, and ordering information, please consult the Diodes Incorporated website or contact your local sales representative.
