Diodes Incorporated PI3USB10MZKE+DMX: A High-Performance USB 2.0 Switch

The PI3USB10MZKE+DMX is an advanced USB 2.0 high-speed switch from Diodes Incorporated, designed to provide an efficient solution for switching USB signals. This product is an integral component for applications that require the routing of USB 2.0 signals from a common USB host to multiple downstream ports or devices.

Constructed with the latest technology, the PI3USB10MZKE+DMX offers low on-resistance and low capacitance, which ensures minimal signal distortion and power loss, making it ideal for high-speed data transmission applications. This switch is designed to handle data rates up to 480 Mbps, making it perfectly suited for USB 2.0 applications.

The PI3USB10MZKE+DMX features a single 4:1 multiplexer/demultiplexer configuration, which simplifies the design of USB interfaces by allowing a single USB port to connect to multiple devices. This can be particularly useful in applications like laptops, desktops, docking stations, and USB hubs, where space is at a premium and design simplicity is desired.

One of the key benefits of the PI3USB10MZKE+DMX is its power efficiency. The device operates with a low power consumption, which is critical for battery-powered devices where energy conservation is paramount. Additionally, its support for 1.8V control logic enables the switch to interface with low-voltage processors and microcontrollers, further enhancing its compatibility with modern low-power designs.

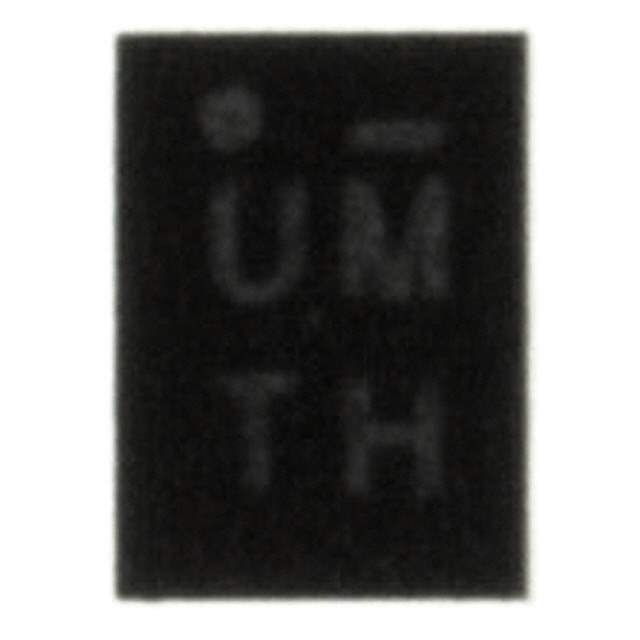

The PI3USB10MZKE+DMX comes in an ultra-small, space-saving 16-pin QFN package, making it a compact choice for designs where board space is limited. Furthermore, its RoHS compliance ensures that it meets the latest environmental standards, reducing the ecological impact of electronic components.

In summary, the PI3USB10MZKE+DMX from Diodes Incorporated is a versatile, high-performance USB 2.0 switch that offers designers a compact, power-efficient, and high-speed solution for managing USB signal routing in a variety of electronic devices.
