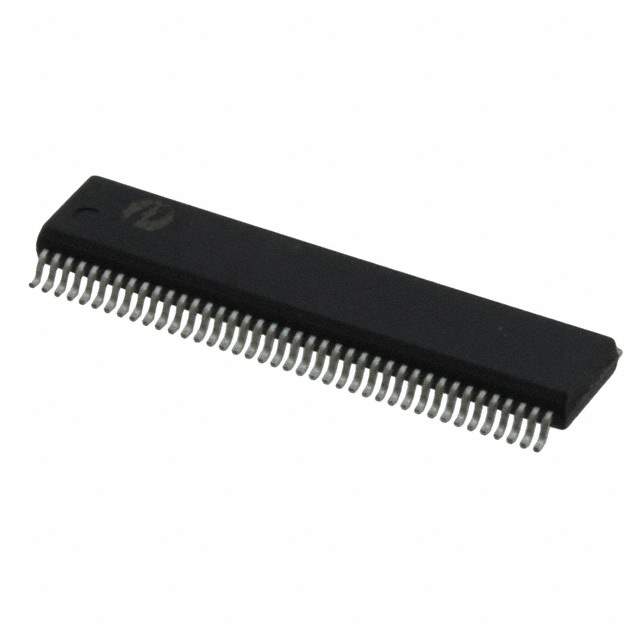

Product Overview: PI3C34X245BEX from Diodes Incorporated

The PI3C34X245BEX is a high-performance, 3.3V, 16-bit bidirectional transceiver designed by Diodes Incorporated. This component is part of their PI3C series, which is known for its high-speed and low-power operation. It is primarily intended for use in applications that require bidirectional data flow in either direction on a bus or between two buses.

Key Features

• Bus Hold: The device includes a bus hold feature, which prevents floating inputs and ensures stable operation without the need for external pull-up or pull-down resistors.
• Low Power Consumption: With its advanced CMOS technology, the PI3C34X245BEX offers extremely low power dissipation, making it suitable for power-sensitive applications.
• High-Speed Data Transfer: The transceiver is capable of supporting data transfer rates that are ideal for high-speed signal processing and communication interfaces.
• Wide Operating Temperature Range: The device is designed to operate over an extended temperature range, ensuring reliability and performance under varying environmental conditions.

Applications

The PI3C34X245BEX is versatile and can be used in a variety of applications, including:

• Bus Interface
• Data Communication Systems
• Servers and Networking Equipment
• Signal Bridging

Quality and Reliability

Diodes Incorporated is committed to the highest standards of quality and reliability. The PI3C34X245BEX transceiver is no exception and has been rigorously tested to meet stringent industry requirements. It is also RoHS compliant, ensuring that it meets current environmental standards for electronic components.

Technical Specifications

Some of the technical specifications for the PI3C34X245BEX include:

• Supply Voltage (V_CC): 3.3V ±0.3V
• Data Rate: High-speed
• Operating Temperature Range: -40°C to +85°C
• Package: Offered in a convenient packaging option

For detailed specifications and application information, designers and engineers are encouraged to consult the datasheet provided by Diodes Incorporated.
