The PI3C32X245BEX is a high-performance, 32-bit, 5-port bus exchange switch designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This component is engineered to provide a seamless and efficient means of routing data between multiple bus masters and targets in a system, making it an ideal solution for complex digital switching applications.

Key Features

• High Bandwidth: With a bus width of 32 bits, the PI3C32X245BEX can handle a significant amount of data, ensuring swift data transfer and reduced bottlenecks in high-speed communication environments.
• Low On-Resistance: The device features a low on-resistance, which minimizes signal distortion and enhances signal integrity, thereby improving overall system performance.
• 5V Tolerant: The inputs and I/Os are 5V tolerant, providing compatibility with a range of signal levels and protecting against potential damage from higher voltage levels.
• Versatile Power Supply: It operates with a power supply range of 3.0V to 3.6V, allowing for flexible integration into various circuit designs without the need for additional voltage level translation.
• Industrial Temperature Range: The switch is designed to perform reliably in a wide temperature range, from -40°C to +85°C, making it suitable for industrial applications.
• Low Power Consumption: Its design focuses on power efficiency, which reduces the thermal footprint and helps in creating energy-saving systems.

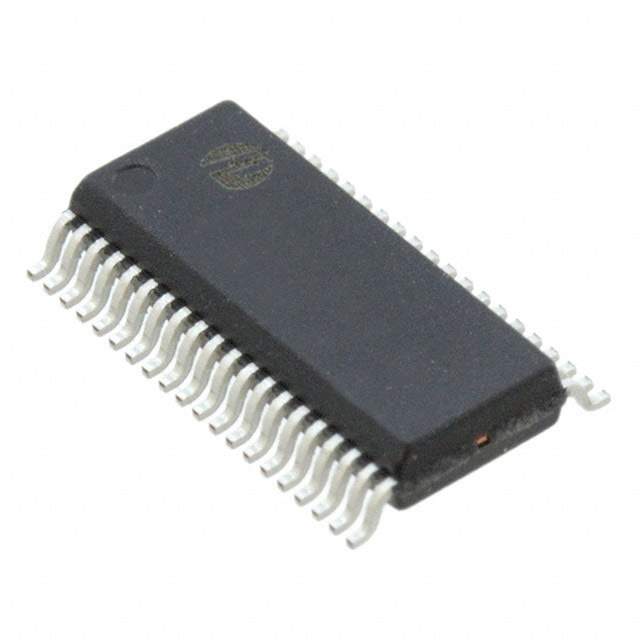

• Package Options: The PI3C32X245BEX is available in a 56-pin SSOP (Shrink Small Outline Package), providing a compact footprint for space-constrained applications.

Applications

The PI3C32X245BEX is versatile in its applications, catering to a broad spectrum of industries and systems. It is particularly well-suited for:

• Communication systems such as routers, switches, and base stations
• Data center servers and storage systems
• High-speed data acquisition and signal processing
• Industrial control and automation systems

In conclusion, the PI3C32X245BEX from Diodes Incorporated represents a robust, high-speed bus exchange switch that offers designers a mix of performance, power efficiency, and versatility, making it an excellent choice for a multitude of advanced digital applications.
