DMN1045UFR4-7 - A High-Efficiency N-Channel MOSFET from Diodes Incorporated

The DMN1045UFR4-7 is a cutting-edge N-Channel enhancement mode Field Effect Transistor (MOSFET) brought to the market by Diodes Incorporated, a leading manufacturer in the semiconductor industry. This product is designed to optimize power efficiency and performance, making it an ideal choice for a wide range of applications, including power management, load switch, and battery protection circuits.

Constructed with advanced MOSFET technology, the DMN1045UFR4-7 boasts a low on-resistance (R<sub>DS(on)) of just 6.5mΩ at V<sub>GS = 10V, which significantly reduces conduction losses and enhances overall device efficiency. This feature, combined with a maximum continuous drain current (I<sub>D) of 12A, allows for high current handling capability in a compact form factor.

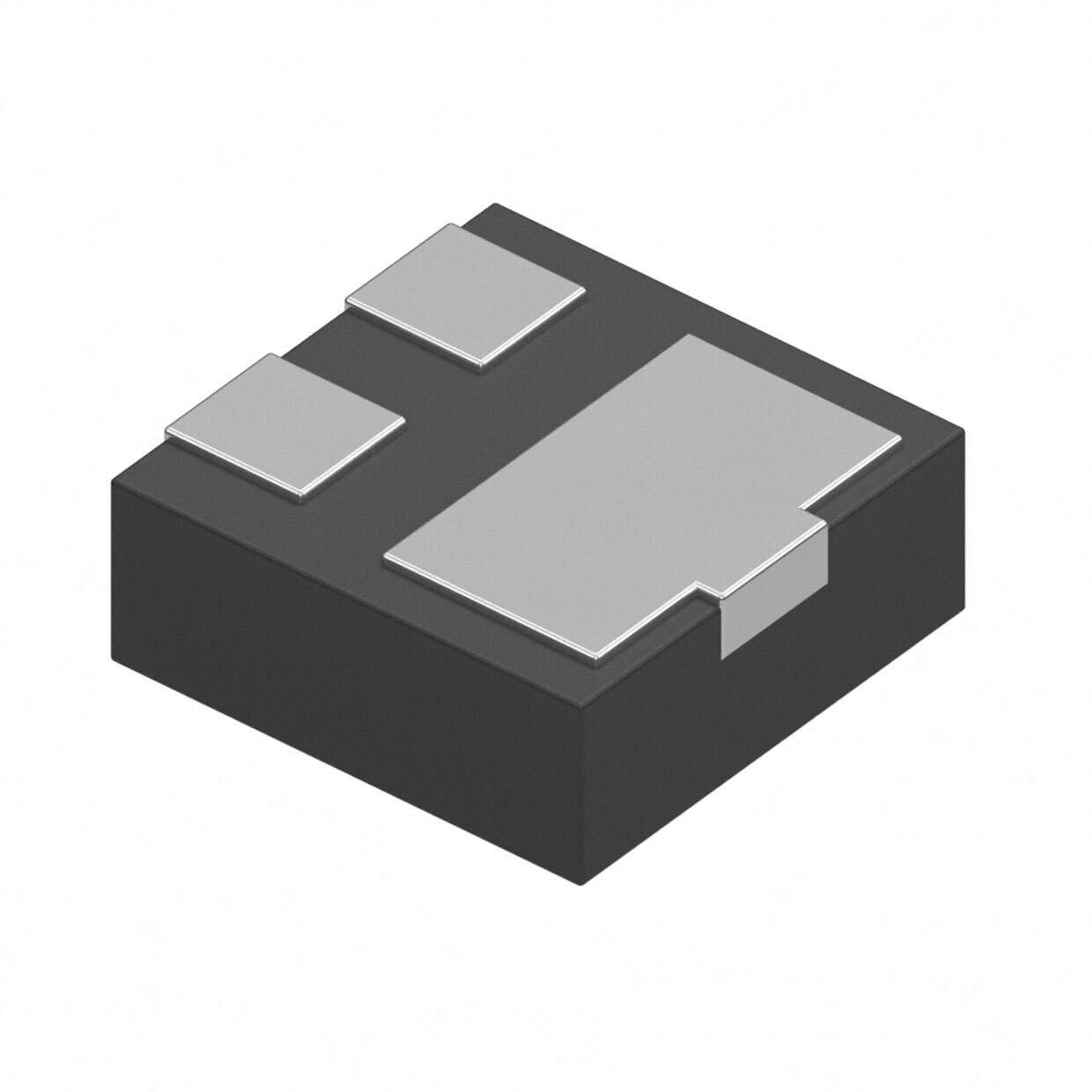

The DMN1045UFR4-7 is housed in an ultra-small DFN2020 package, measuring only 2mm x 2mm, which is a testament to Diodes Incorporated's commitment to miniaturization without compromising on performance. This makes the product an excellent choice for space-constrained applications that require high-density power designs.

Furthermore, this MOSFET supports a wide range of operating temperatures, from -55°C to 150°C, ensuring reliable performance across various environmental conditions. Its low threshold voltage (V<sub>GS(th)) allows for easy driveability, which is particularly beneficial in low-voltage applications.

Key features of the DMN1045UFR4-7 include:

• Low on-resistance (R<sub>DS(on))
• High continuous drain current (I<sub>D)
• Ultra-compact DFN2020 package
• Wide operating temperature range
• Low threshold voltage

Diodes Incorporated's DMN1045UFR4-7 is RoHS compliant and halogen-free, reflecting the company's dedication to environmental sustainability and safety. With its robust design and superior electrical characteristics, this MOSFET is a versatile component that can enhance the performance and efficiency of a broad array of electronic systems.

Whether you're designing power supplies, motor controls, or portable electronics, the DMN1045UFR4-7 from Diodes Incorporated is a reliable and high-performing solution that can meet your circuitry needs.
