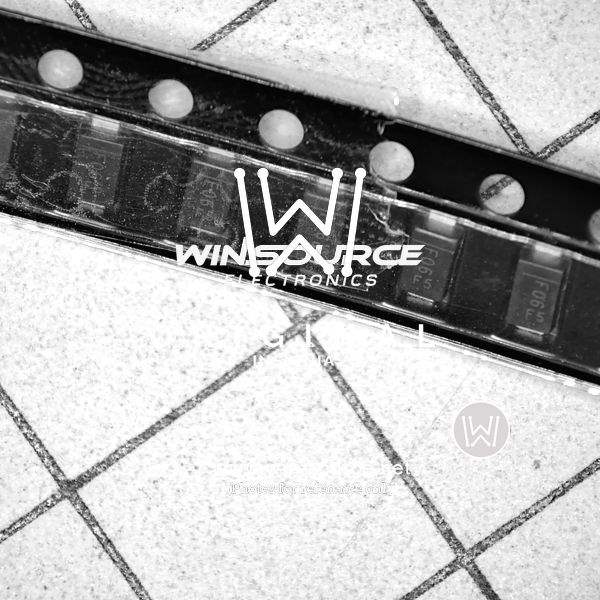

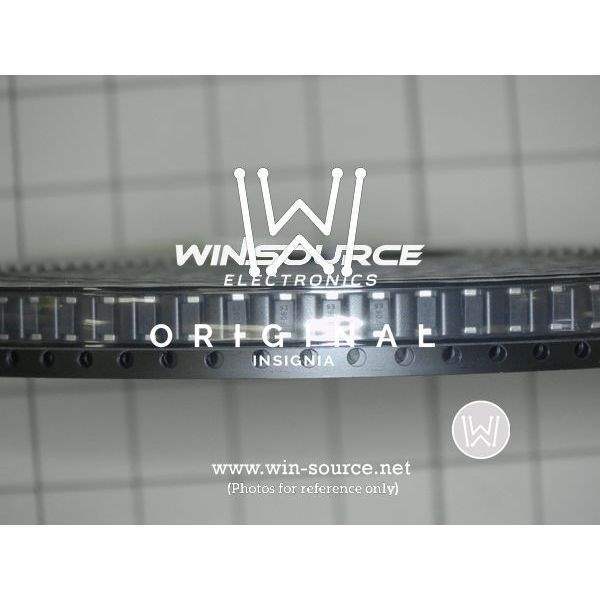

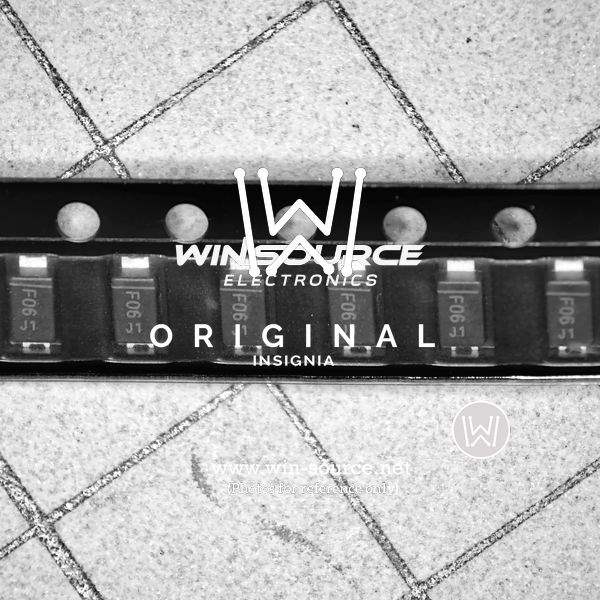

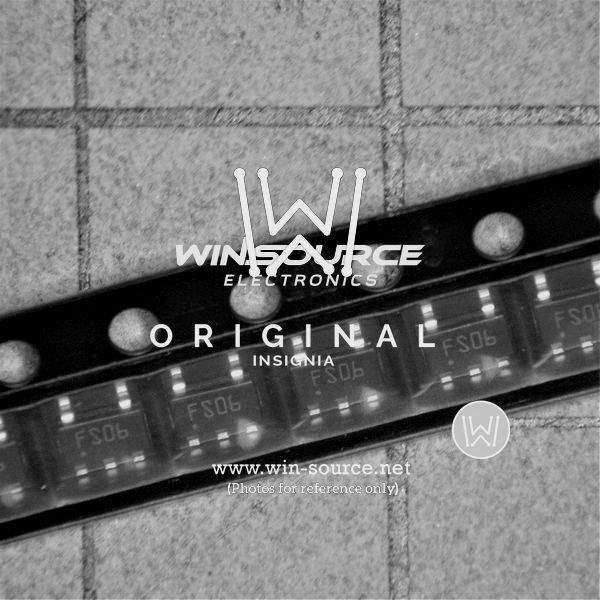

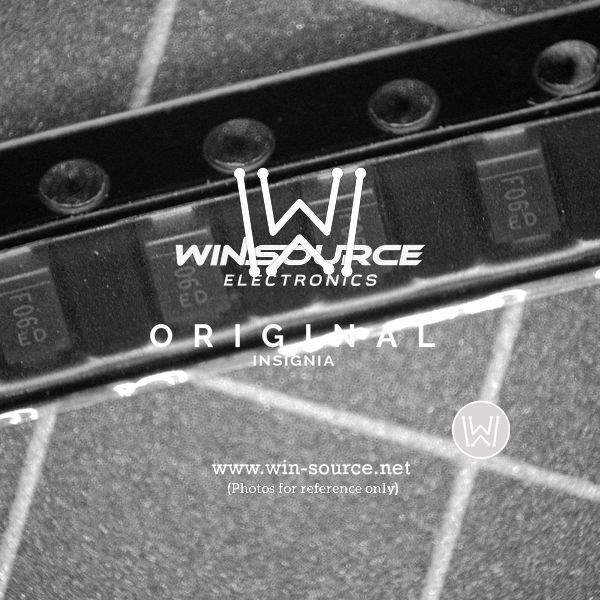

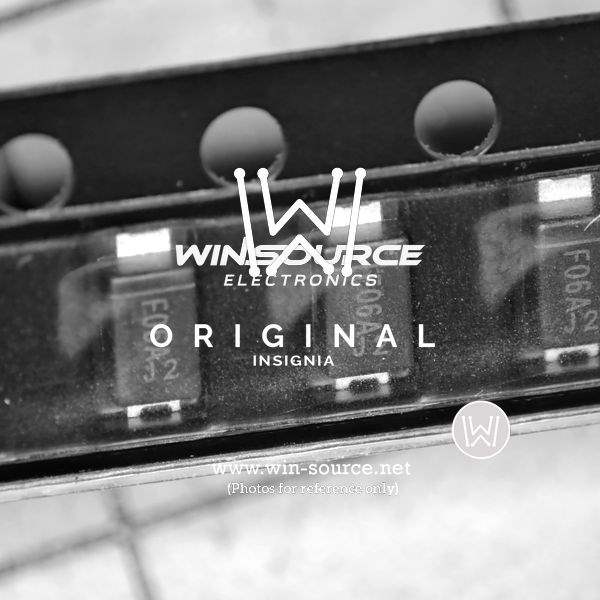

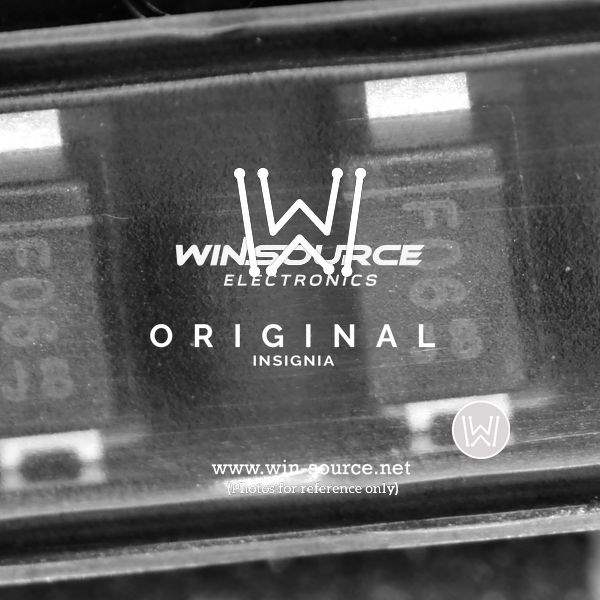

Introducing the DFLS140L-7 Schottky Diode

Diodes Incorporated presents the DFLS140L-7, a cutting-edge Schottky diode designed to deliver high-efficiency, low-voltage power rectification. This robust diode is packaged in a space-saving PowerDI123 package, making it an ideal choice for compact applications where space is at a premium.

Key Features

• Low Forward Voltage Drop: The DFLS140L-7 boasts a low forward voltage drop, enhancing system efficiency by minimizing power loss during operation.
• High Current Capability: With a forward continuous current rating of 1A, this diode is capable of handling high current applications, ensuring reliability and performance.
• High Surge Current Capability: It is designed to withstand high surge currents, making it resilient against unexpected current spikes that could otherwise damage electronic components.
• PowerDI123 Package: The compact PowerDI123 package allows for a smaller footprint on PCBs, providing designers with more flexibility in layout and design.
• Low Power Loss: High efficiency is achieved through the diode's low power loss characteristics, contributing to energy savings in the final application.
• Lead-Free and RoHS Compliant: Complying with environmental regulations, the DFLS140L-7 is lead-free and RoHS compliant, making it suitable for use in a wide range of markets and applications.

Applications

The DFLS140L-7 is versatile and can be used in various applications such as:

• DC/DC converters
• Power supply units
• Freewheeling diodes in converters and motor control circuits
• LED lighting applications
• Portable devices
• Reverse voltage protection circuits

Reliability and Performance

Diodes Incorporated ensures that the DFLS140L-7 meets the highest quality and performance standards. The diode's reliability is backed by rigorous testing and adherence to stringent industry specifications. Whether for consumer electronics, automotive applications, or industrial systems, the DFLS140L-7 Schottky diode is an excellent choice for designers seeking efficiency, reliability, and compactness.

For detailed specifications and application notes, please refer to the official datasheet provided by Diodes Incorporated.
