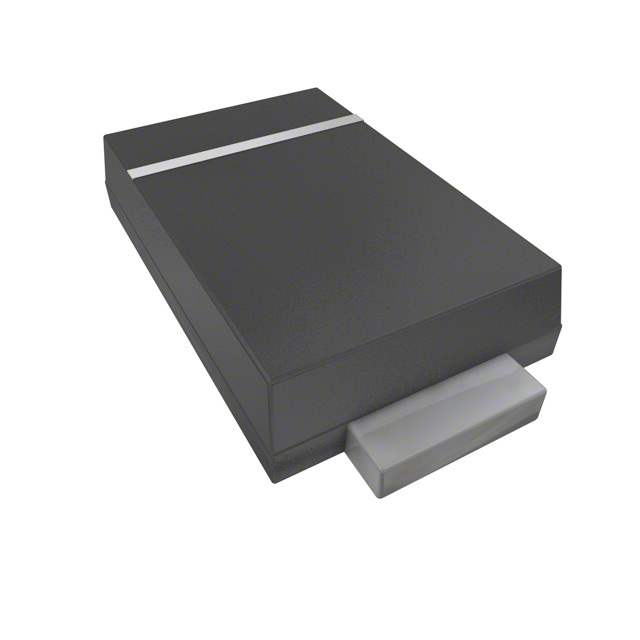

Introducing the B340AF-13 Rectifier Diode from Diodes Incorporated

The B340AF-13, crafted by the reputable Diodes Incorporated, represents a pinnacle of engineering in the realm of rectifier diodes. This robust component is designed to offer efficient and reliable performance in a variety of applications, ranging from power supply units to consumer electronics. With its impressive features and specifications, the B340AF-13 is poised to be an essential asset in your electronic designs.

Key Features

• High Current Capability: The B340AF-13 is capable of handling a high forward current of 3A, making it suitable for high current applications.
• Low Forward Voltage Drop: With a low forward voltage drop, this diode ensures minimal power loss, enhancing the overall efficiency of the electronic circuit.
• High Reliability: Built to last, the B340AF-13 boasts a long operational life, thanks to its robust construction and the high-quality materials used in its manufacture.
• Surface Mount Package: The device comes in an SMA package, which is ideal for automated assembly processes and helps in saving valuable PCB space.
• High Surge Current Capability: It can withstand high surge currents, ensuring protection against unexpected voltage spikes.

Electrical Characteristics

• Peak Repetitive Reverse Voltage (Vrrm): 40V, providing a good margin for typical low voltage applications.
• Maximum Continuous Forward Current (If): 3A, suitable for circuits with higher current demands.
• Maximum Forward Voltage Drop (Vf) at If: 0.5V at 3A, ensuring low power dissipation during operation.
• Operating Junction Temperature Range: -55°C to +150°C, allowing for use in a wide range of environmental conditions.

Applications

The B340AF-13 is versatile and can be integrated into a multitude of applications. It is particularly well-suited for:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Polarity protection devices
• Automotive applications
• Other power-related applications

With its combination of high efficiency, durability, and compact form factor, the B340AF-13 from Diodes Incorporated is an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
