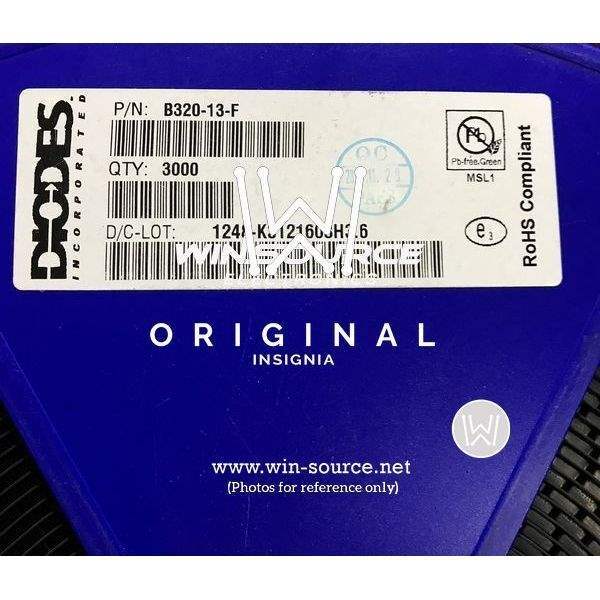

Product Overview: B320-13-F from Diodes Incorporated

The B320-13-F is a high-performance Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This rectifier is renowned for its efficiency and reliability, making it an ideal choice for a wide range of applications, including power supply, converter circuits, and high-frequency inverters.

Key Features

• High Current Capability: The B320-13-F can handle a high forward surge current of 3.0A, making it suitable for applications requiring robust current handling capability.
• Low Power Loss: With a low forward voltage drop, this device ensures minimal power loss during operation, which enhances the overall efficiency of the system it is integrated into.
• High Reliability: The device is built to provide long-term reliability with its robust construction, ensuring a prolonged operational lifespan even under challenging conditions.
• Lead-Free Finish: The B320-13-F comes with a lead-free finish, making it compliant with current RoHS directives and environmentally friendly.
• Surface Mount Package: It is available in a compact SMC package, which is ideal for automated assembly processes and helps in saving PCB space.

Electrical Characteristics

The B320-13-F boasts a repetitive peak reverse voltage of 200V, ensuring it can withstand high-voltage environments. Its low forward voltage drop is typically 0.71V at 3.0A, contributing to its high efficiency. The device also features a fast switching capability, which reduces losses during the transition periods of the rectifier.

Applications

Thanks to its robustness and efficiency, the B320-13-F is suitable for a variety of applications. It is commonly used in:

• DC/DC converters
• Free-wheeling diodes
• Power supply units
• Polarity protection devices
• High-frequency rectification circuits

Overall, the B320-13-F from Diodes Incorporated is a testament to the company's commitment to providing high-quality, efficient, and reliable components for the electronics industry.
