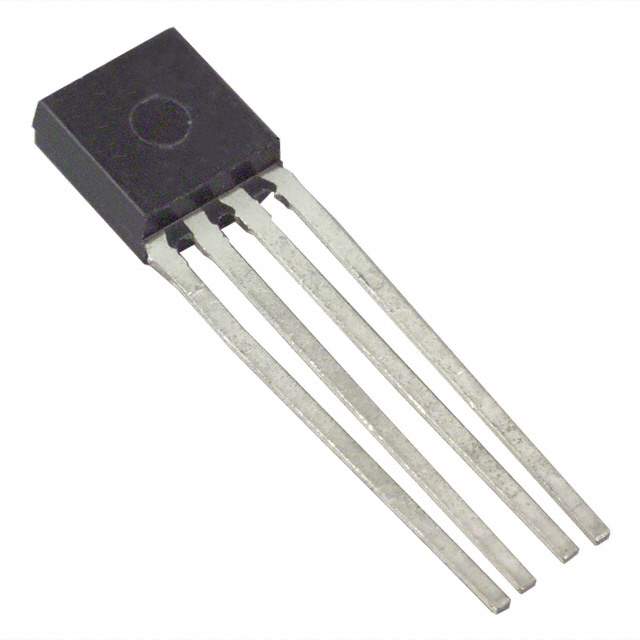

The AH284-PL-B, from Diodes Incorporated, is a high-performance, precision Hall Effect latch designed for a wide range of applications requiring accurate position detection and switching. This device is particularly suitable for industrial and consumer applications where reliability and durability are of paramount importance.

Key Features

• High Sensitivity: The AH284-PL-B is engineered to detect magnetic fields with high accuracy, ensuring precise operation in various conditions.
• Wide Operating Voltage Range: This device operates over a supply voltage range of 3.5V to 20V, providing flexibility for different power environments.
• Low Power Consumption: With its energy-efficient design, the AH284-PL-B is suitable for battery-powered systems, helping to extend the life of the device.
• Temperature Stability: The Hall Effect latch operates effectively across a broad temperature range, maintaining consistent performance from -40°C to 85°C.
• Robust Output: The open-drain output can directly drive a DC motor or other inductive loads, providing a high level of integration.

Applications

The versatility of the AH284-PL-B allows it to be used in a variety of applications, including but not limited to:

• Brushless DC motor commutation
• Position and speed sensing
• Rotary encoders
• Flow meters
• Contactless switches

Product Quality and Support

Diodes Incorporated is known for its commitment to quality, and the AH284-PL-B is no exception. It is built to meet high industry standards, ensuring a reliable and long-lasting solution for your sensing needs. Additionally, Diodes Incorporated provides comprehensive technical support and documentation, making integration and application of the AH284-PL-B straightforward for engineers and product designers.

With its combination of performance, reliability, and versatility, the AH284-PL-B is an excellent choice for designers looking to incorporate a high-quality Hall Effect latch into their systems.
