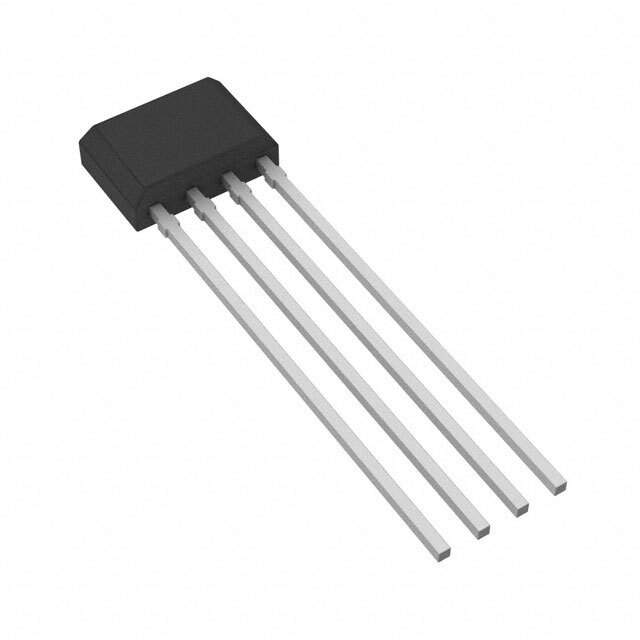

The AH277AZ4-CG1 from Diodes Incorporated is a high-performance, precision Hall Effect Unipolar Switch IC designed for a wide range of applications. This advanced sensor IC is engineered to provide reliable and accurate switching responses to magnetic fields, making it an ideal choice for position and speed sensing in various industrial and consumer products.

Key Features

• Operating Voltage: The device operates within a supply voltage range of 3V to 28V, accommodating a variety of power environments.
• High Sensitivity: Capable of detecting small changes in magnetic fields, ensuring precise operation even in applications with low magnetic field strengths.
• Low Power Consumption: Designed for energy efficiency, the AH277AZ4-CG1 is suitable for battery-powered devices due to its low current draw.
• Output Type: It features an open-drain output, providing flexibility in interfacing with other electronic components.
• Temperature Range: The device operates effectively across a wide temperature range from -40°C to 85°C, ensuring reliability in harsh conditions.
• Package: Housed in a compact SOT-553 package, it is suitable for space-constrained applications.

Applications

The AH277AZ4-CG1 is versatile and can be used in a variety of markets and applications, including:

• Brushless DC motor commutation
• Position and speed sensing
• Proximity detection
• Flow meters
• Tachometers
• Linear and rotational position sensors

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the AH277AZ4-CG1 is no exception. It is manufactured to meet rigorous standards, ensuring high reliability and performance consistency. The device's robust design ensures long-term stability and operation, even in the most demanding applications.

Ordering Information

To order or inquire about the AH277AZ4-CG1, please contact Diodes Incorporated or an authorized distributor. Ensure to reference the complete part number for accurate product specification and availability.
