The AH1822-FT4G-7 is a state-of-the-art Hall Effect sensor IC designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This sensor is specifically engineered to meet the demanding needs of both consumer and industrial applications, offering a blend of precision, reliability, and versatility.

Key Features

• High Sensitivity: The AH1822-FT4G-7 is equipped with a high-sensitivity Hall Effect sensor that can detect magnetic fields with exceptional accuracy, making it ideal for applications that require precise position or speed sensing.
• Omni-polar Detection: This device can detect both North and South poles, eliminating the need for magnet polarity identification and simplifying system design and assembly.
• Low Power Consumption: Designed for energy efficiency, the AH1822-FT4G-7 operates with a low supply current, making it suitable for battery-powered and portable devices.
• Robust Output: The sensor provides a stable digital output that is not easily disrupted by external electromagnetic noise, ensuring reliable performance in a variety of environments.
• Wide Operating Voltage Range: It supports a broad range of supply voltages from 2.5V to 5.5V, accommodating diverse application requirements.
• Chopper-Stabilized Design: The chopper-stabilized architecture of the AH1822-FT4G-7 enhances stability over temperature and eliminates the need for external capacitors, reducing the overall component count.

Applications

The AH1822-FT4G-7 is versatile enough to be used in a variety of applications, including but not limited to:

• Portable electronic devices
• Domestic appliances
• Industrial equipment
• Automotive systems
• Position and speed sensing

Quality and Compliance

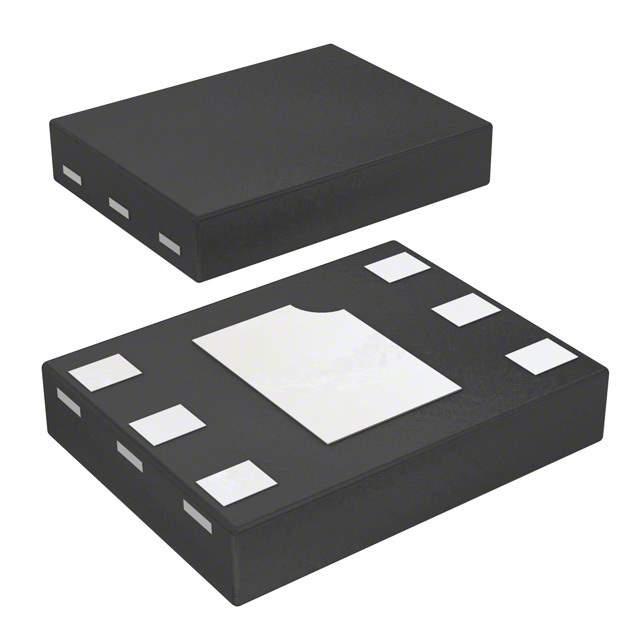

Diodes Incorporated is committed to delivering high-quality products. The AH1822-FT4G-7 is produced in compliance with stringent industry standards, ensuring reliability and performance. It is available in a small footprint package, making it easy to integrate into various designs without compromising on space.

For detailed technical specifications, application notes, and support documentation, customers are encouraged to visit the official Diodes Incorporated website or contact their support team.
