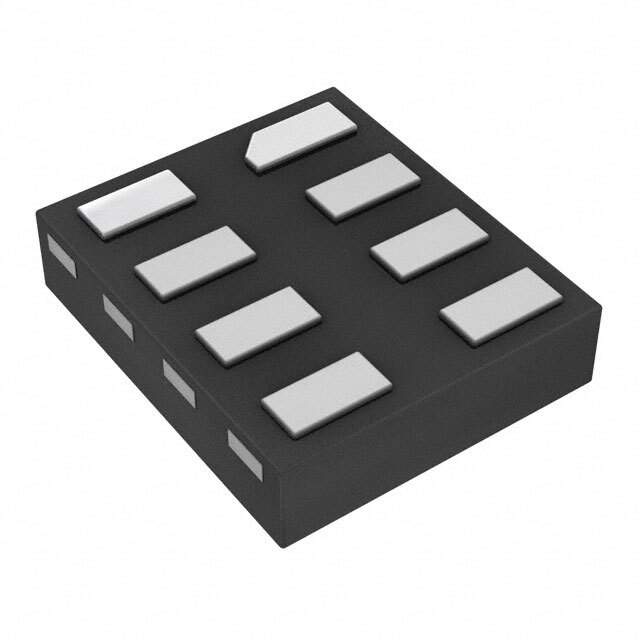

Product Overview: 74AUP2G126RA3-7 by Diodes Incorporated

The 74AUP2G126RA3-7 is a high-performance, dual non-inverting buffer/line driver with 3-state outputs, designed and manufactured by Diodes Incorporated. This advanced product is part of the 74AUP family, which is known for its ultra-low power consumption and operation under low voltage conditions, making it an ideal solution for mobile and battery-powered applications.

This integrated circuit is optimized for use in a variety of digital circuits where buffer or line driving capabilities are required. The 74AUP2G126RA3-7 ensures a high level of signal integrity while providing the necessary isolation to protect sensitive components from noise and interference.

Key Features:

• Low Static Power Consumption: The 74AUP2G126RA3-7 boasts a very low static power consumption, with a typical I_CC of only 0.9 µA, making it an energy-efficient choice for your designs.
• Low Voltage Operation: This device can operate at a nominal voltage of 1.8V, with a range of 0.8V to 3.6V, providing flexibility for various low voltage applications.
• High-Speed Performance: Despite its low power design, the 74AUP2G126RA3-7 offers high-speed performance with a t_pd of only 3.5 ns at 3.3V, ensuring swift signal transmission.
• 3-State Outputs: The dual non-inverting buffers come with 3-state outputs to enable connection to a bus or other high-impedance state applications, allowing for effective signal management.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is provided, with inputs and outputs tolerating up to ±8 kV human body model (HBM) and ±500 V charged device model (CDM).

Applications:

The 74AUP2G126RA3-7 is suitable for a wide range of applications, including:

• Mobile and portable devices
• Computing peripherals
• Data communication infrastructure
• Consumer electronics
• Signal buffering and driving in various digital systems

With its combination of low power consumption, high-speed operation, and robust protection features, the 74AUP2G126RA3-7 from Diodes Incorporated stands out as a reliable and efficient component for your next-generation electronic designs.
