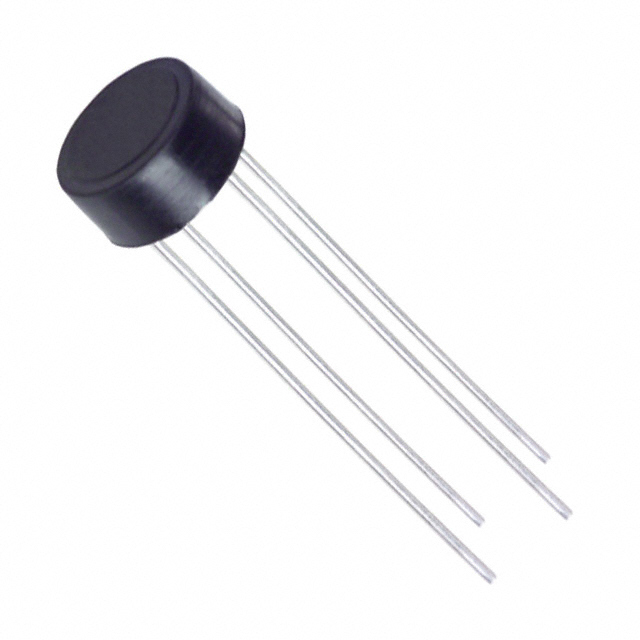

The 2W10G is a robust single-phase bridge rectifier from Diodes Incorporated, renowned for its high efficiency and reliability. This electronic component is designed to convert an alternating current (AC) input into a direct current (DC) output, making it a fundamental part of power supply units for a wide range of electronic devices and applications.

Key Features

• High Current Capability: The 2W10G is capable of handling a high forward current of 2A, making it suitable for moderate power demands.
• Peak Repetitive Reverse Voltage: With a peak repetitive reverse voltage (VRRM) of 1000V, this component can withstand high voltage spikes without damage.
• Low Forward Voltage Drop: The low forward voltage drop ensures higher efficiency and reduces thermal stress on the device, contributing to a longer operational lifespan.
• Surge Overload Rating: It offers excellent surge overload protection, safeguarding the rectifier and connected components from unexpected power surges.
• Case: Encased in a robust, molded plastic material, the 2W10G is designed to offer physical protection and enhance thermal conductivity.
• Mounting: This component is through-hole mounted, making it easy to install and replace on printed circuit boards (PCBs).

Applications

The 2W10G bridge rectifier is versatile and can be used in a variety of applications, including:

• Power supplies for consumer electronic appliances
• LED lighting systems
• Battery charging circuits
• Office machines and automation systems
• Telecommunication equipment

Quality and Reliability

Diodes Incorporated is committed to providing high-quality components. The 2W10G bridge rectifier is manufactured with the highest standards, ensuring that it meets the rigorous demands of industrial and consumer applications. With its excellent thermal and electrical performance, the 2W10G is a reliable choice for engineers and designers looking for a dependable rectification solution.
