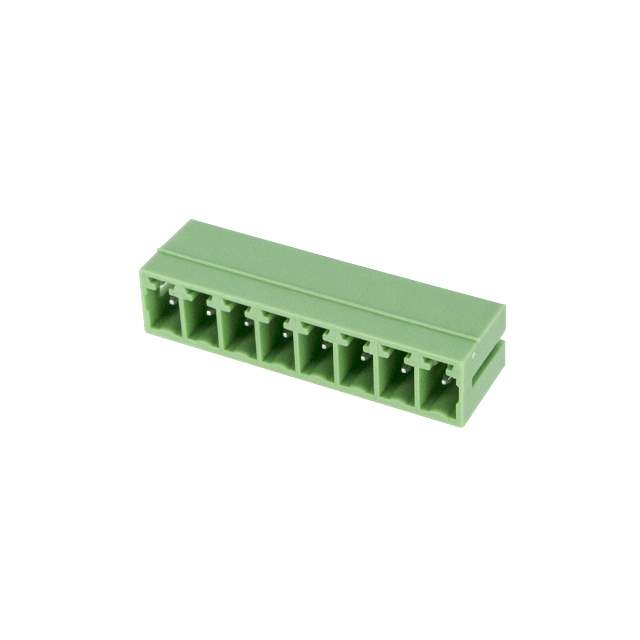

ECH381R-08P Real Image1 ECH381R-08P Real Image2
Same model may have multiple batches, images only for reference.
ECH381R-08P Real Image1 ECH381R-08P Real Image2
ECH381R-08P Real Image1 ECH381R-08P Real Image2
Same model may have multiple batches, images only for reference.

ECH381R-08P

Part No ECH381R-08P
Manufacturer Dinkle Corporation
Catalog Headers, Plugs and Sockets
Description TERM BLK 8POS 3.81MM HDR / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Datasheet
ECH381R-08P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Dinkle Corporation
Series ECH381R
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Positions Per Level 8
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 14A
Voltage - IEC 320 V
Current - UL 8 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Green
Temperature Range - Operating -40°C ~ 120°C
Contact Mating Finish Tin
Features -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8536.90.4000
Standard Package 200 pcs
Win Source Part Number 1381980-ECH381R-08P
Ultra Librarian 3D Model Ultra Librarian ECH381R-08P CAD Model

Description

The ECH381R-08P is an eight-position header terminal block designed for electrical connections. It is part of the ECH381R series and features male pins and a shrouded design for added protection.

  • Positions: 8
  • Positions per Level: 8
  • Level: Single
  • Pitch: 0.150" (3.81mm)
  • Header Orientation: Right-Angle 90°
  • IEC Current Rating: 14A
  • IEC Voltage Rating: 320V
  • UL Current Rating: 8A
  • UL Voltage Rating: 300V
  • Temperature Range: -40°C to 120°C
  • Mounting Type: Through Hole
