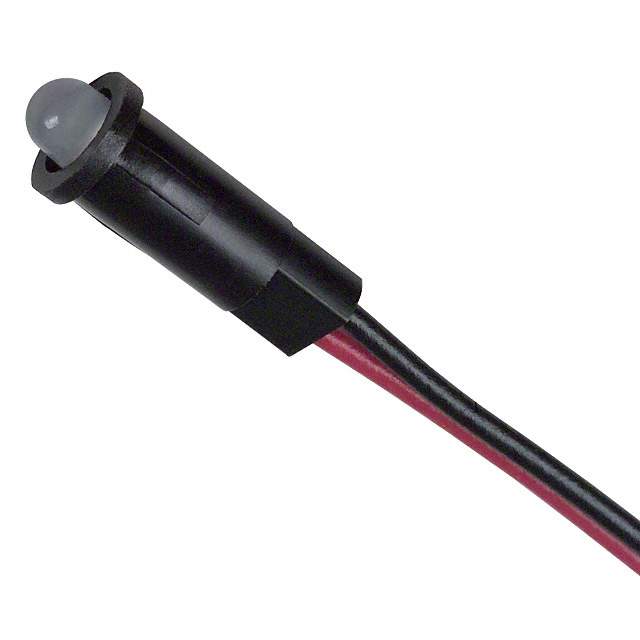

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Manufacturer Dialight
Packaging Bulk
Type LED
Lamp Color Blue
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 3.2V
Current 30mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.16" (4.06mm)
Lens Size 3mm, T-1
Lens Style Round with Domed Top
Millicandela Rating 57mcd
Wavelength - Peak 468nm
Viewing Angle 100°
Termination Style Wire Leads - 14" (355.60mm)
Base Product Number 5580803
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 350-1591,558-0803-007F
Standard Package 100
Win Source Part Number 1331725-5580803007F
Ultra Librarian 3D Model Ultra Librarian 5580803007F CAD Model

Description

The Dialight LED panel indicator is a blue lamp color LED with a viewing angle of 100°.

  • Voltage: 3.2V
  • Current: 30mA
  • Millicandela Rating: 57mcd
  • Peak Wavelength: 468nm
  • Panel Cutout Shape: Round
  • Lens Style: Round with a domed top
  • Packaging Type: Bulk
  • Termination Style: Wire leads - 14" (355.60mm)
  • Standard Package: 100
