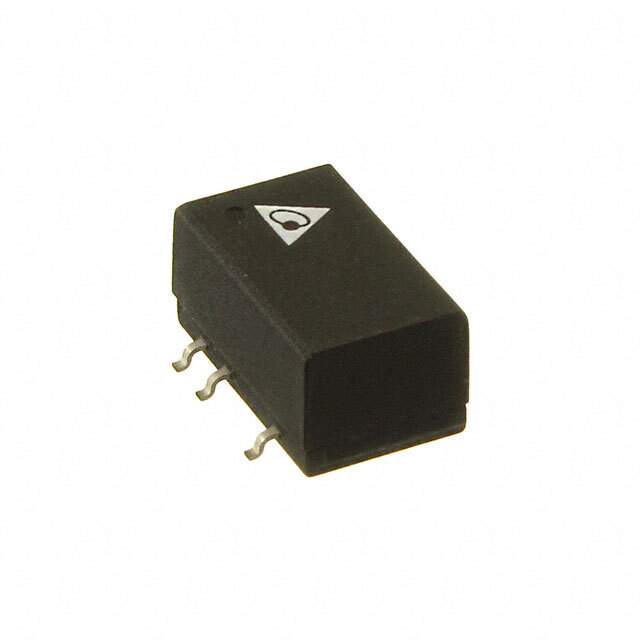

SH01S1515A

Name: SH01S1515A
Brand: Delta Electronics
SKU: 1237421
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SH01S1515A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 67mA 13.5V - 16.5V Input
Datasheet	SH01S1515A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	13.5V
Voltage - Input (Max)	16.5V
Voltage - Output 1	15V
Current - Output (Max)	67mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01S
Other Names	941-1291
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237421-SH01S1515A
Ultra Librarian 3D Model	Ultra Librarian SH01S1515A CAD Model

Alternative Products

Description

The SH01S/D (1W) isolated module is a power supply board mount DC DC converter that is designed for medical applications.

Features: SCP, 1.5 kV voltage isolation, and 1 output
Power Output: 1 W
Maximum Output Current: 67mA
Voltage Input: ranges from 13.5V to 16.5V
Voltage Output: 15V
Efficiency: 78%
Package/Case: 8-SMD module, 5 leads
Operating Temperature Range: -40°C to 85°C
Dimensions: 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Manufacturer: Delta Electronics
Also Known As: 941-1291
