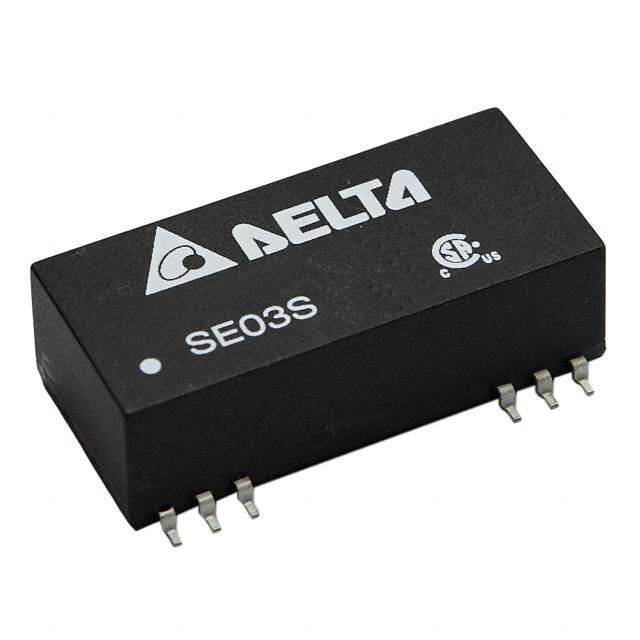

Same model may have multiple batches, images only for reference.

SE03D1212A

Name: SE03D1212A
Brand: Delta Electronics
SKU: 1237439
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SE03D1212A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 18V Input
Datasheet	SE03D1212A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SE03S/D (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	81%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
Base Product Number	SE03D
Other Names	941-1354
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237439-SE03D1212A
Ultra Librarian 3D Model	Ultra Librarian SE03D1212A CAD Model

Alternative Products

Description

The Delta Electronics SE03D1212A is a high-quality DC DC converter that is designed to meet the highest standards of quality and reliability.

Series: SE03S/D (3W)
Category: power supplies - board mount
Type: isolated
Package: comes in a tube package
Features: SCP, UVLO
Standard Package: 10
Mounting: SMD (SMT)
Power (Watts): 3 W
Voltage-Isolation: 1.5 kV
Outputs: two outputs with a maximum output current of 125mA, 125mA
Input Voltage Range: 9V to 18V
Output Voltage: 12V and -12V
Efficiency: 81%
Package: 24-SMD module, 12 leads package
Operating Temperature Range: -40°C to 71°C
