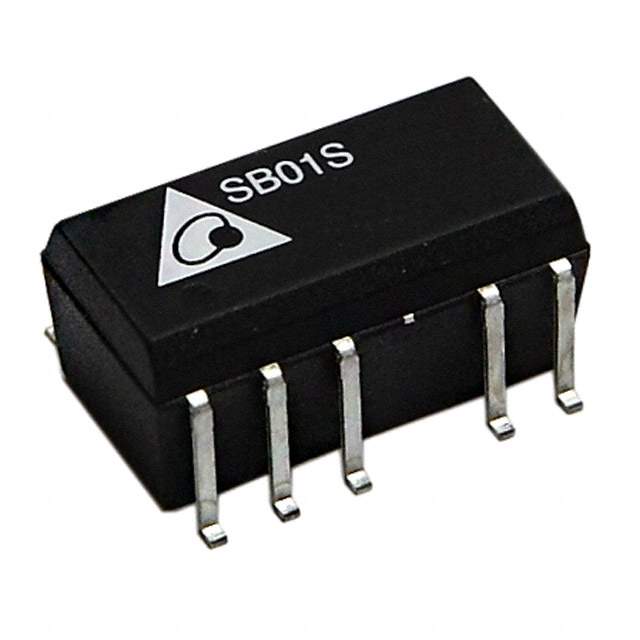

Same model may have multiple batches, images only for reference.

SB01D2412A

Get a Quote

Part No	SB01D2412A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 21.6V - 26.4V Input
Datasheet	SB01D2412A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SB01S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	42mA, 42mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	79%
Mounting	SMD (SMT)
Package / Case	12-SMD Module, 10 Leads
Dimension	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number	SB01D
Other Names	941-1278
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237486-SB01D2412A
Ultra Librarian 3D Model	Ultra Librarian SB01D2412A CAD Model

Alternative Products

Description

The SB01S/D (2W) is an isolated module DC-DC converter with a package of 12-SMD module, 10 leads.

Features: SCP
Reliable Power Supply for: medical applications
Voltage Isolation: 3 kV
Outputs: two outputs
Maximum Output Current: 42mA each
Input Voltage: 21.6V to 26.4V
Output 1 Voltage: 12V
Output 2 Voltage: -12V
Efficiency: 79%
Temperature Range: -40°C to 85°C
Dimension: 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
