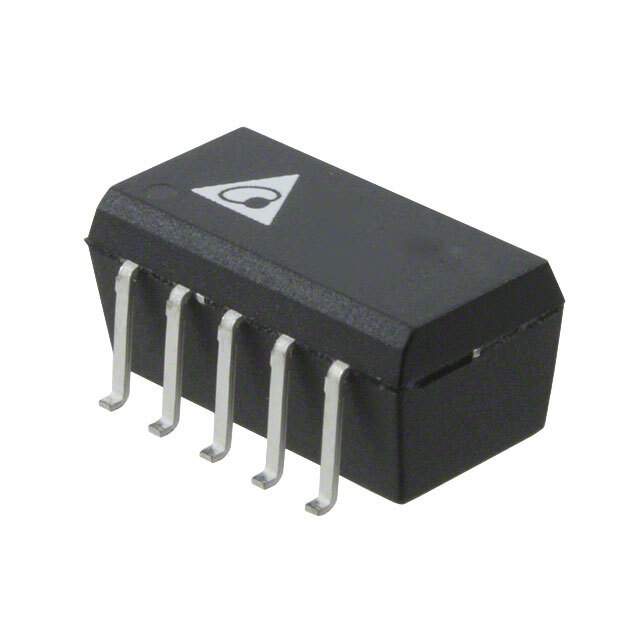

Same model may have multiple batches, images only for reference.

SA01D0515A

Get a Quote

Part No	SA01D0515A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Datasheet	SA01D0515A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	79%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01D
Other Names	941-1253
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237509-SA01D0515A
Ultra Librarian 3D Model	Ultra Librarian SA01D0515A CAD Model

Alternative Products

Description

{"Intro":"

The Delta Electronics SA01D (1W) is an isolated module DC-DC converter that comes in a tube package and is designed for medical applications.

","Specifications":"

Voltage Isolation: 1 kV
Efficiency: 79%
Maximum Output Current: 33mA
Maximum Output Current: 33mA
Input Voltage Range: 4.5V to 5.5V
Output Voltage: 15V and -15V
Number of Outputs: 2
Features: SCP
Mounting: SMD (SMT)
Temperature Range: -40°C to 85°C
Dimensions: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
MSL Level: 3 (168 hours)
REACH Status: Unaffected
HTSUS Code: 8504.40.9580
Manufacturer Part Number: 1237509-SA01D0515A
Base Product Number: SA01D
