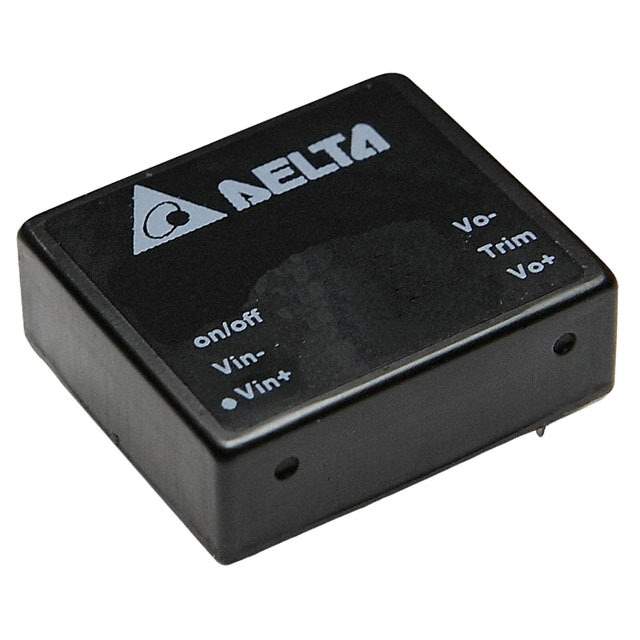

Same model may have multiple batches, images only for reference.

S36SE12001NDFG

Get a Quote

Part No	S36SE12001NDFG
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 17W / Isolated Module DC DC Converter 1 Output 12V 1.3A 18V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	S36SE (17W)
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	1.3A
Power (Watts)	17 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
Control Features	Enable, Active Low
Other Names	941-1573
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237515-S36SE12001NDFG
Ultra Librarian 3D Model	Ultra Librarian S36SE12001NDFG CAD Model

Alternative Products

Description

{"Intro":"

The Delta Electronics S36SE (17W) series isolated module is a high-performance DC-DC converter designed for commercial applications.

","Specifications":"

Voltage-Isolation: 1.5 kV
Maximum Output Current: 1.3A @ 12V
Package: 6-DIP module
Mounting: Through-hole technology
Efficiency: 87%
Features: Remote On/Off, UVLO features
Temperature Range: -40°C to 85°C
Dimensions: 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm)
Package: Tube
Units per Package: 10
