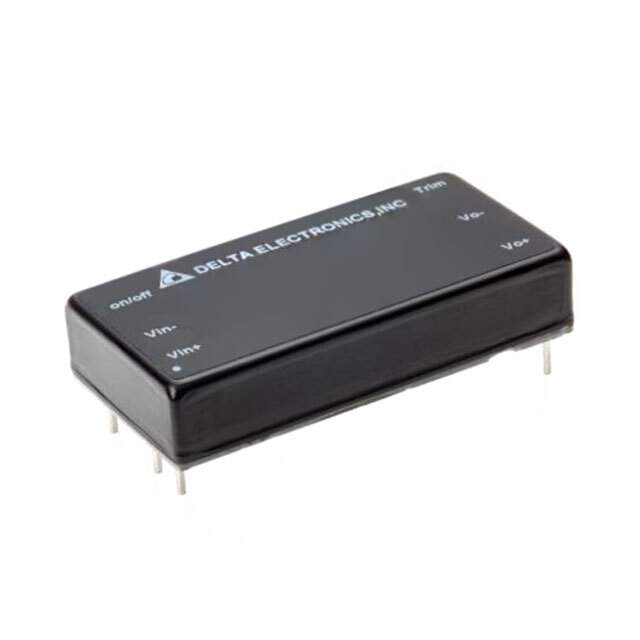

Same model may have multiple batches, images only for reference.

S24SP05008PDFH

Name: S24SP05008PDFH
Brand: Delta Electronics
SKU: 1237519
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S24SP05008PDFH
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 40W / Isolated Module DC DC Converter 1 Output 5V 8A 9V - 36V Input
Datasheet	S24SP05008PDFH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	S24SP (40W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	8A
Power (Watts)	40 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	92.8%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.67" H (50.8mm x 25.4mm x 17.1mm)
Base Product Number	S24SP
Other Names	1145-1288
Standard Package	5
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237519-S24SP05008PDFH
Ultra Librarian 3D Model	Ultra Librarian S24SP05008PDFH CAD Model

Alternative Products

Description

{"Intro":"

The S24SP (40W) isolated module DC-DC converter from Delta Electronics is a power supply board mount DC-DC converter that features remote On/Off, OCP, OTP, OVP, SCP, UVLO.

","Specifications":"

Package: Tube
Applications: ITE (Commercial), Railway
Standard Package: 5
Power Rating: 40W
Voltage Isolation: 1.5 kV
Number of Outputs: One
Maximum Output Current: 8A
Input Voltage Range: 9V to 36V
Output Voltage: 5V
Efficiency: 92.8%
Mounting Type: Through-hole
Package/Case: 6-DIP module
Temperature Range: -40°C to 85°C
Dimension: 2.00\" L x 1.00\" W x 0.67\" H (50.8mm x 25.4mm x 17.1mm)
MSL Level: 1 (Unlimited)
REACH Status: REACH Unaffected
