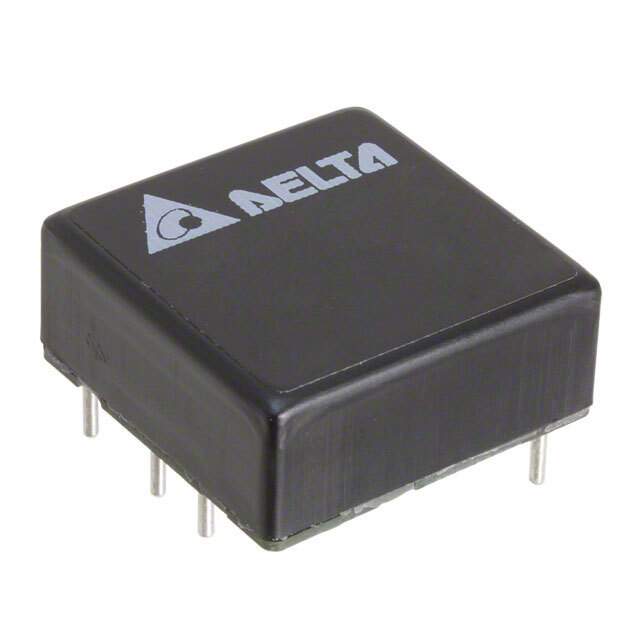

S24DE120R4PDFA

Name: S24DE120R4PDFA
Brand: Delta Electronics
SKU: 1237548
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S24DE120R4PDFA
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 420mA, 420mA 9V - 36V Input
Datasheet	S24DE120R4PDFA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	S24DE (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	420mA, 420mA
Power (Watts)	10 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	87%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	S24DE
Other Names	941-1608
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237548-S24DE120R4PDFA
Ultra Librarian 3D Model	Ultra Librarian S24DE120R4PDFA CAD Model

Alternative Products

Description

The S24DE (10W) is an isolated module type DC-DC converter that is designed for use in ITE (Commercial) applications.

Power Output: 10W
Package: 10
Number of Outputs: 2
Current Output (Max): 420mA each
Input Voltage Range: 9V to 36V
Output Voltage: 12V (Output 1), -12V (Output 2)
Efficiency: 87%
Mounting Type: Through hole
Package/Case: 6-DIP module
Operating Temperature: -40°C to 85°C
Dimension: 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Manufacturer: Delta Electronics
ECCN: EAR99
