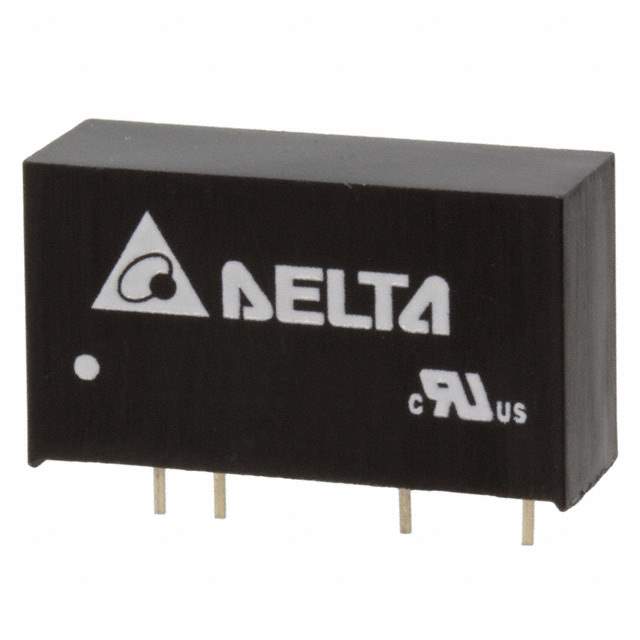

Same model may have multiple batches, images only for reference.

PI01S1215A

Name: PI01S1215A
Brand: Delta Electronics
SKU: 1352192
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PI01S1215A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 65mA 10.8V - 13.2V Input
Datasheet	PI01S1215A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Delta Electronics
Series	PI01S/D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	15V
Current - Output (Max)	65mA
Power (Watts)	1 W
Voltage - Isolation	6 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-25°C ~ 85°C
Efficiency	66%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm)
Base Product Number	PI01S
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1352192-PI01S1215A
Ultra Librarian 3D Model	Ultra Librarian PI01S1215A CAD Model

Alternative Products

Description

Delta Electronics presents the 1352192-PI01S1215A, a 1W isolated module power supply component. Bold the product name and manufacturer Delta Electronics

Series: PI01S/D (1W)
Size / Dimension: 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.6mm x 12.5mm)
Applications: Medical
Features: SCP
Voltage - Isolation: 6 kV
Number of Outputs: 1
Current - Output (Max): 65mA
Voltage - Input (Min): 10.8V
Voltage - Input (Max): 13.2V
Voltage - Output 1: 15V
Efficiency: 66%
Mounting Type: Through Hole
Package / Case: 7-SIP Module, 5 Leads
Operating Temperature: -25°C ~ 85°C
ECCN: EAR99
