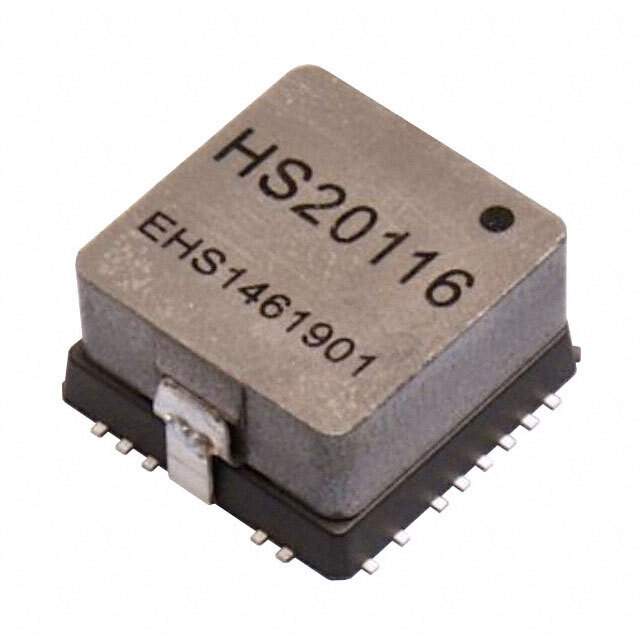

Same model may have multiple batches, images only for reference.

HS20116

Name: HS20116
Brand: Delta Electronics
SKU: 1382276
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HS20116
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.8-5.5V / Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 20A 4.5V - 20V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	HS
Package	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	20V
Voltage - Output 1	0.8 ~ 5.5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	20A
Applications	ITE (Commercial)
Features	OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	96%
Mounting Type	Surface Mount
Package / Case	20-PowerBQFN Module
Size / Dimension	0.53" L x 0.53" W x 0.28" H (13.5mm x 13.5mm x 7.2mm)
Supplier Device Package	20-QFN (13.5x13.5)
Approval Agency	-
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	270 pcs
Win Source Part Number	1382276-HS20116
Ultra Librarian 3D Model	Ultra Librarian HS20116 CAD Model

Alternative Products

Description

The 1382276-HS20116 is a non-isolated PoL (Point of Load) module from Delta Electronics' HS series.

Application: ITE (Commercial)
Protection: OCP, OTP, OVP, UVLO
Output Current (Max): 20A
Input Voltage: 4.5V to 20V
Size: 0.53" L x 0.53" W x 0.28" H
Mounting Type: Surface Mount
Package: 20-PowerBQFN Module
Efficiency: 96%
