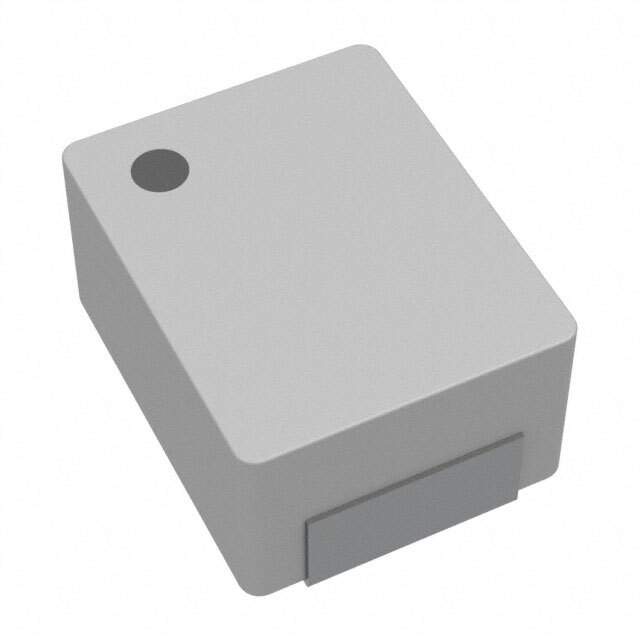

Same model may have multiple batches, images only for reference.

HMLQ20161T-1R0MDR

Name: HMLQ20161T-1R0MDR
Brand: Delta Electronics
SKU: 1328902
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HMLQ20161T-1R0MDR
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 1UH 3.2A 59 MOHM SMD / 1 µH Shielded Inductor 3.2 A 59mOhm Max 0806 (2016 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Delta Electronics/Cyntec
Packaging	Reel - TR
Material - Core	Metal
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	3.2 A
Current - Saturation (Isat)	3.65A
Shielding	Shielded
DC Resistance (DCR)	59mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	0806 (2016 Metric)
Supplier Device Package	0806
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
Base Product Number	HMLQ20161
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	HMLQ20161T-1R0MDR-ND,2037-HMLQ20161T-1R0MDRDKR,2037-HMLQ20161T-1R0MDRCT,2037-HMLQ20161T-1R0MDRTR
Standard Package	3,000
Win Source Part Number	1328902-HMLQ20161T-1R0MDR
Ultra Librarian 3D Model	Ultra Librarian HMLQ20161T-1R0MDR CAD Model

Alternative Products

Description

The Delta Electronics/Cyntec HMLQ20161T-1R0MDR is a fixed inductor that comes in a reel package.

Manufacturer: Delta Electronics/Cyntec
Product Name: HMLQ20161T-1R0MDR
Inductor Type: Fixed
Packaging: Reel
Shielding: Shielded
Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Inductance: 1 µH
Seated Height: 0.039" (1.00mm)
Standard Package: 3,000
Mounting Style: Surface Mount (SMD)
Tolerance: ±20 percent
Core Material: Metal
DC Resistance (DCR): 59mOhm Max
Supplier Device Package: 0806
Temperature Range: -55°C to 125°C
Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
