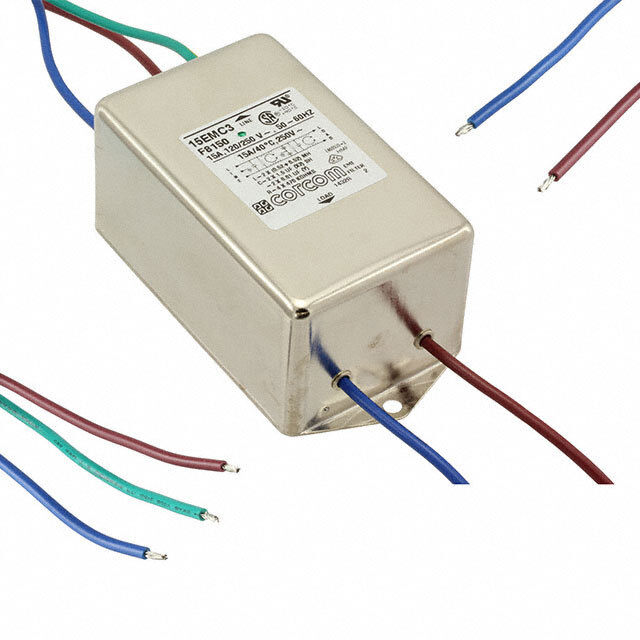

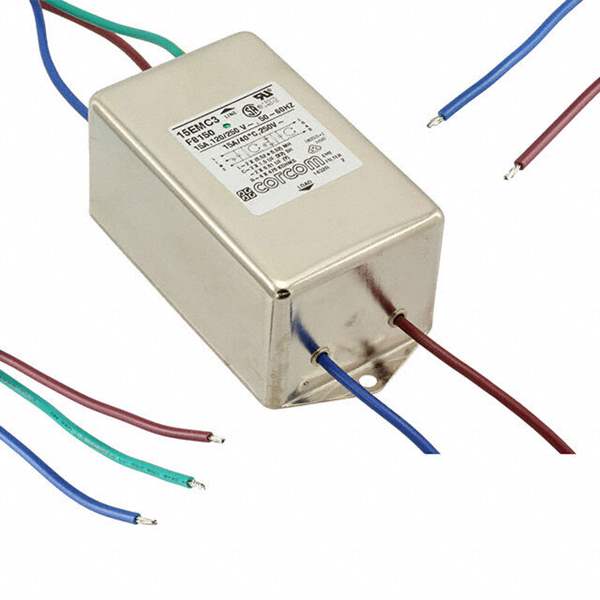

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 115V, 250V
Current 20 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Threaded Post (8-32)
Inductance 1mH
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1538972-20DRGS5
Ultra Librarian 3D Model Ultra Librarian 20DRGS5 CAD Model
