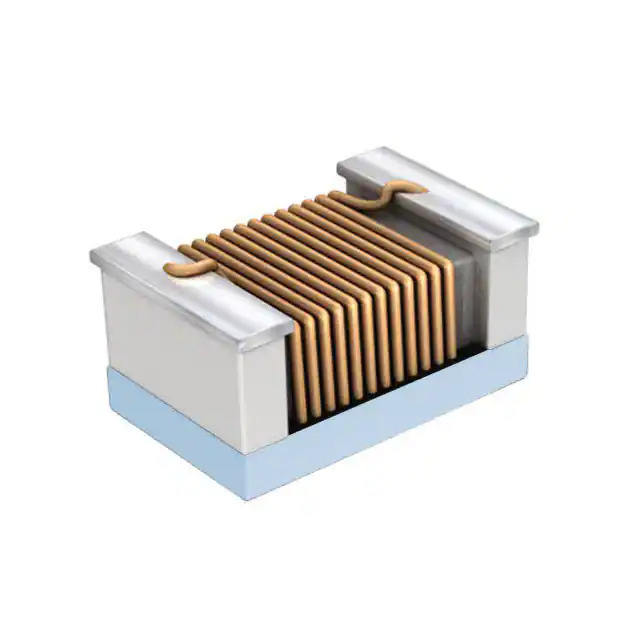

Same model may have multiple batches, images only for reference.

0402HS-6N8EJTS

Name: 0402HS-6N8EJTS
Brand: Delta Electronics
SKU: 1377287
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0402HS-6N8EJTS
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 6.8NH 680MA 83MOHM SMD
Datasheet	0402HS-6N8EJTS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Delta Electronics/Components
Series	0402HS
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	6.8 nH
Tolerance	±5%
Current Rating (Amps)	680 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	83mOhm
Q @ Freq	20 @ 250MHz
Frequency - Self Resonant	4.8GHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max)	0.024" (0.60mm)
Base Product Number	0402HS
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1377287-0402HS-6N8EJTS
Ultra Librarian 3D Model	Ultra Librarian 0402HS-6N8EJTS CAD Model

Alternative Products

Description

The 0402HS series fixed inductor from Delta Electronics/Components is a high-quality component for inductive applications. With a compact size of 0.050 inches (1.27mm) in length and 0.030 inches (0.76mm) in width, it is suitable for space-constrained designs.

Core Construction: Drum core, wirewound
Inductance: 6.8nH
Tolerance: ±5%
Mounting Type: Surface Mount
Packaging: Tape & Reel
Temperature Range: -40°C to 125°C
Product Status: Active
