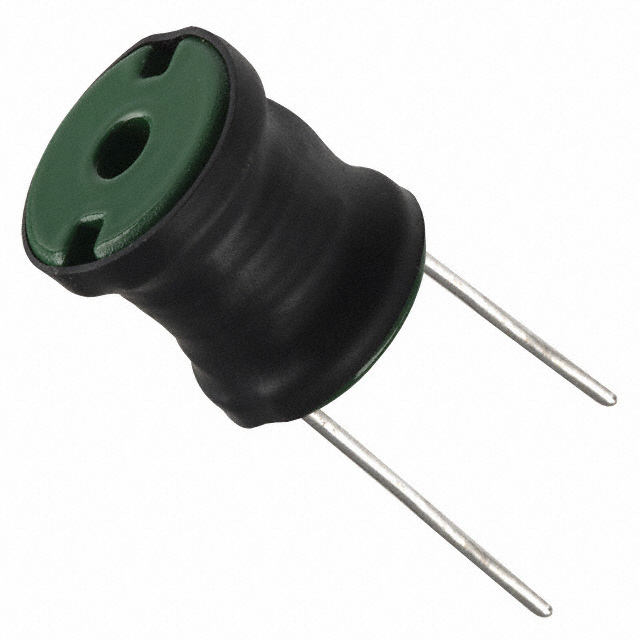

DC780R-822L

Part No DC780R-822L
Catalog Fixed Inductors
Description FIXED IND 8.2UH 11.4A 7 MOHM TH
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±15%
Current Rating (Amps) 11.4 A
Current - Saturation (Isat) 38A
Shielding Unshielded
DC Resistance (DCR) 7mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.772" Dia (19.60mm)
Height - Seated (Max) 0.831\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1532059-DC780R-822L
Ultra Librarian 3D Model Ultra Librarian DC780R-822L CAD Model
