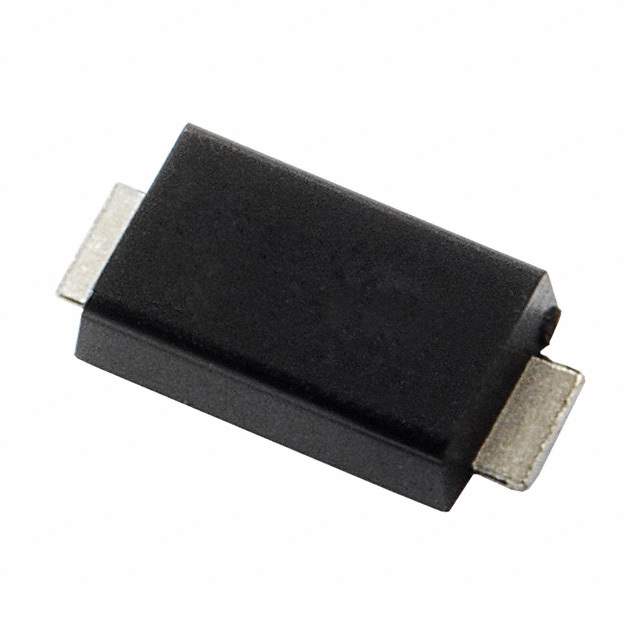

TPSMA6L12A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr DComponents
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 30.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-TPSMA6L12ATR
Win Source Part Number 1012046-TPSMA6L12A
Ultra Librarian 3D Model Ultra Librarian TPSMA6L12A CAD Model

Description

The DComponents TPSMA6L12A is a TVS diode that falls under the category of circuit protection.

  • Category: Circuit Protection
  • Breakdown Voltage: 13.3V
  • Clamping Voltage: 19.9V @ Ipp
  • Peak Pulse Power: 600W
  • Current Peak Pulse: 30.2A @ 10/1000µs
  • Diode Type: Unidirectional
  • Reverse Standoff Voltage: 12V
  • Mounting Type: SMD
  • Win Source Part Number: 1012046-TPSMA6L12A
