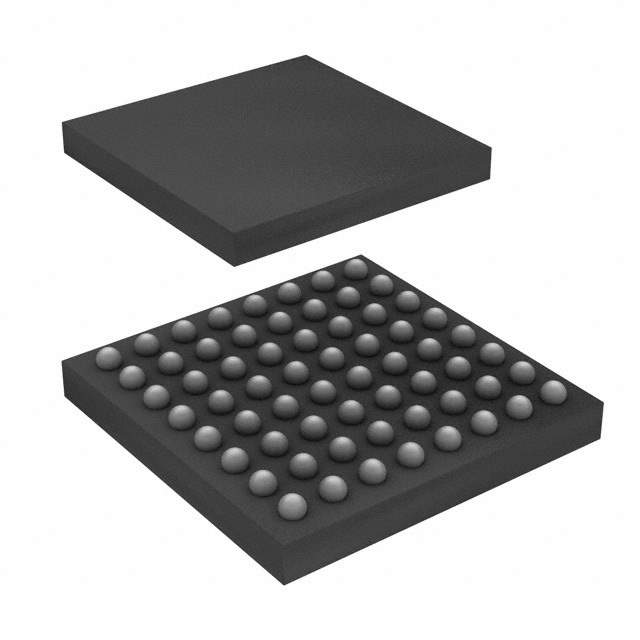

Same model may have multiple batches, images only for reference.

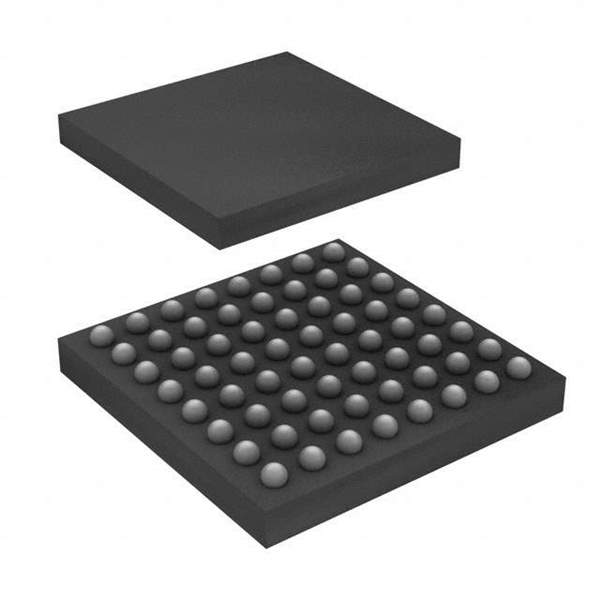

S29GL256S11DHV023 Real Image
Same model may have multiple batches, images only for reference.

S29GL256S11DHV023

Part No S29GL256S11DHV023
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 256MBIT PARALLEL 64FBGA  /  FLASH - NOR Memory IC 256Mb (16M x 16) Parallel 110 ns 64-FBGA (9x9)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series GL-S
Package Tape & Reel (TR)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 256Mb (16M x 16)
Memory Interface Parallel
Write Cycle Time - Word, Page 60ns
Access Time 110 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 64-LBGA
Supplier Device Package 64-FBGA (9x9)
Base Product Number S29GL256
Standard Package 2,200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1254934-S29GL256S11DHV023
Ultra Librarian 3D Model Ultra Librarian S29GL256S11DHV023 CAD Model

Description

The S29GL256S11DHV023 is a 256Mb flash memory IC from Cypress Semiconductor Corp.

  • Memory Type: non-volatile
  • Memory Size: 256Mb (16M x 16)
  • Access Time: 110 ns
  • Voltage Supply: 2.7V to 3.6V
  • Package/Case: 64-LBGA
  • Memory Interface: parallel
  • Write Cycle Time: 60ns
  • Standard Package: 2,200
  • Operating Temperature: -40°C to 105°C (TA)
  • ECCN: 3A991B1A compliant
