Same model may have multiple batches, images only for reference.

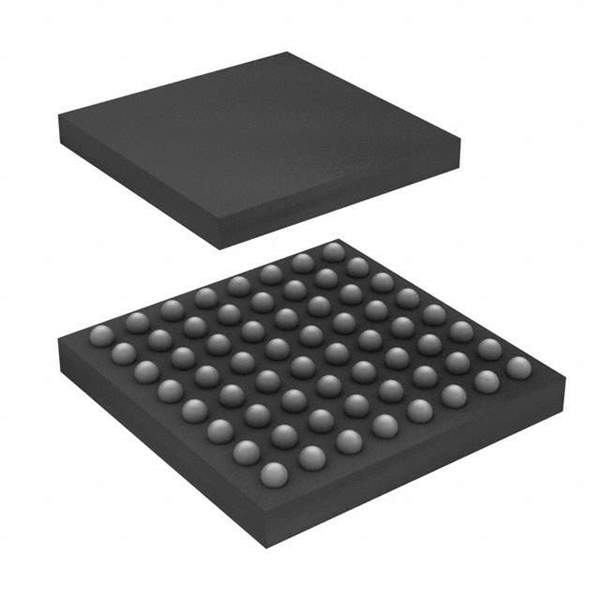

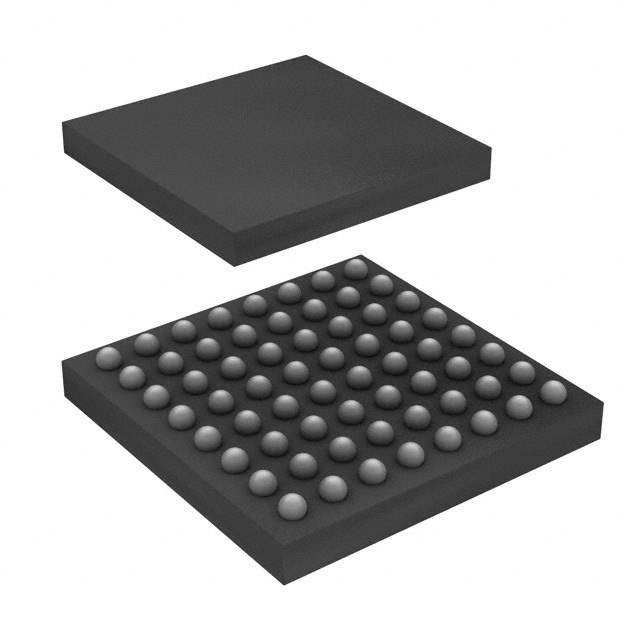

S29GL01GT12DHM023 Real Image
Same model may have multiple batches, images only for reference.

S29GL01GT12DHM023

Part No S29GL01GT12DHM023
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 1GBIT PARALLEL 64FBGA  /  FLASH - NOR Memory IC 1Gb (128M x 8) Parallel 120 ns 64-FBGA (9x9)
Datasheet
S29GL01GT12DHM023 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series Automotive, AEC-Q100, GL-T
Package Tape & Reel (TR)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 1Gb (128M x 8)
Memory Interface Parallel
Write Cycle Time - Word, Page 60ns
Access Time 120 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 64-LBGA
Supplier Device Package 64-FBGA (9x9)
Base Product Number S29GL01
Standard Package 2,200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1255536-S29GL01GT12DHM023
Ultra Librarian 3D Model Ultra Librarian S29GL01GT12DHM023 CAD Model

Description

The Cypress Semiconductor Corp S29GL01GT12DHM023 is a 1Gb (128M x 8) non-volatile FLASH-NOR memory that operates on a voltage supply of 2.7V to 3.6V.

  • Access Time: 120 ns
  • Write Cycle Time: 60 ns for word and page
  • Memory Interface: Parallel
  • Package/Case: 64-LBGA
  • Series: Automotive, AEC-Q100, GL-T
  • Temperature Range (TA): -40°C to 125°C
  • Supplier Device Package: 64-FBGA (9x9)
  • Mounting: SMD (SMT)
