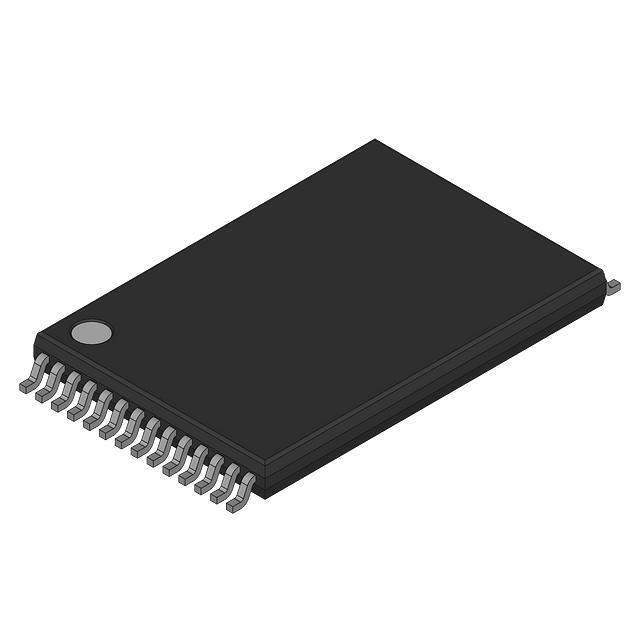

CY7C199CN-15VXC Real Image
Same model may have multiple batches, images only for reference.

CY7C199CN-15VXC

Part No CY7C199CN-15VXC
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 256K (32K x 8) Static RAM
Datasheet
CY7C199CN-15VXC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 256Kb (32K x 8)
Write Cycle Time - Word, Page 15ns
Access Time 15ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 28-BSOJ (0.300", 7.62mm Width)
Manufacturer Package 28-SOJ
Win Source Part Number 1165365-CY7C199CN-15VXC
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY7C199CN
Introduction Date September 10, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY7C199CN-15VXC CAD Model

Description

The CY7C199CN-15VXC is a SRAM-Asynchronous memory device manufactured by Cypress Semiconductor Corp.

  • Memory Size: 256Kb (32K x 8)
  • Access Time: 15ns
  • Operating Voltage Range: 4.5V to 5.5V
  • Package: 28-BSOJ (0.300", 7.62mm Width)
  • Memory Format: SRAM
  • Memory Interface: Parallel
  • ECCN: EAR99 compliant
  • Suitable for: Use in applications that require volatile memory
